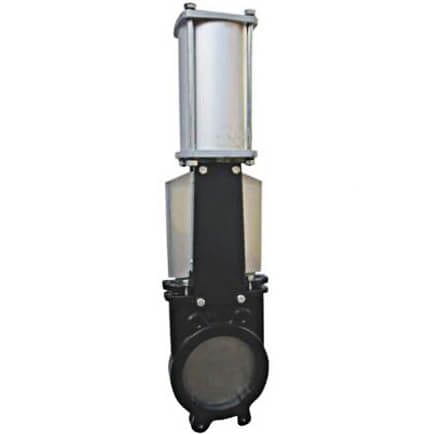

Ductile Iron Knife Gate Valve, GGG40, DN100, PN10, FBE Coated

Product Name: Ductile Iron Knife Gate Valve, Bidirectional
Size: DN100, 4 Inch
Pressure: PN10, Class 150 LB
Body Material: Ductile Iron GGG40
Seat Material: EPDM, NBR
Coating Material: Fusion Bonded Epoxy
End Connection: Wafer Type
Operation: Handwheel

The maintenance-free compact cross seal features a double seal lip profile, ensuring a tight shutoff and adjustable performance without interrupting the working process. The valve is designed with a self-cleaning effect, achieved by flush-out corners in the body and a cutting edge located beneath the gate. Solids and fibers are cut by the cutting edge before the gate is tightened against the elastic seat. The gate guidance is temporarily interrupted during the stroke, allowing dirt to be ejected.
Bidirectional shutoff is provided by the lateral gate surfaces and the elastic seat integrated into the valve body. The seat is chambered and prestressed for enhanced performance. The high-quality finish of both the guiding and sealing surfaces guarantees long service life and tight shutoff. Lateral guidance of the gate ensures that it remains stable, preventing fluttering in either flow direction or during throttling positions.

Technical Specifications

» Nominal Diameter: NPS 2–16 Inch (DN50–DN400)
» Design Pressure: PN10, PN16, Class 150 LB
» Temperature Range: -29°C to 120°C
» Max Working Pressure:
  DN50–DN250: 10 bar
  DN300–DN450: 7 bar
  DN500–DN600: 4 bar
» Body Material: GGG40, ASTM A351 CF8, CF8M, Special Alloys, etc.
» Disc Material: Stainless Steel, Chrome Plated, Special Alloys, etc.
» Seat Material: EPDM (120°C), NBR (80°C)
» Flange Standard: GB/T 9113.1, JB/T 79.1, HG 20592, ASME B16.5, EN 1092-1
» Face-to-Face: MSS SP-81
» Operation: Manual, Pneumatic, Electric, Hydraulic

Product Features

» Bidirectional
» Split Body
» Flatness Knife
» Light Torque
» Support Yoke
» Epoxy Coating-Fusion Bonded Paint
» Sealing Type
