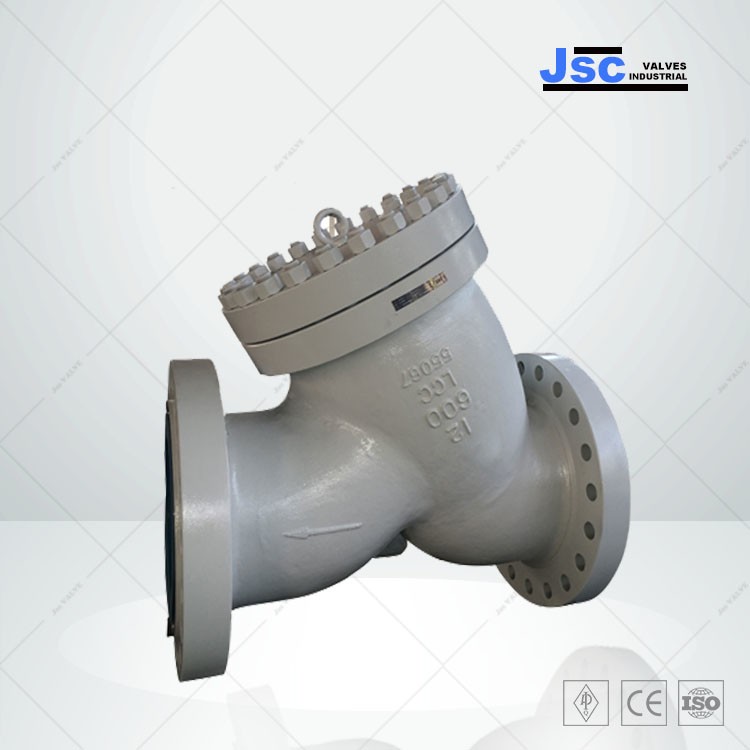

Cast Steel Y Strainer, ASME B16.34, A216 WCB, 4 Inch, 600 LB

Name: Cast Steel Y Strainer, ASME B16.34, A216 WCB, 4 Inch, 600 LB
SKU: KV-20241226-PS-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Cast Steel Y Strainer, designed to ASME B16.34 standards, features a carbon steel ASTM A216 WCB body for superior strength and durability. With a 4-inch size (DN100), Class 600 LB pressure rating, and PN100 compatibility, this strainer ensures efficient filtration in high-pressure systems. The RF flanged ends provide easy installation and reliable sealing.

Request a quote

Detail Information

Product Name: Cast Steel Y Strainer
Type: Y Type Strainer
Design Standard: ASME B16.34
Body Material: ASTM A216 WCB
Size: 4 Inch, DN100
Pressure: Class 600 LB, PN100
End Connection: RF Flanged

Y-type strainers are essential high-efficiency filtration equipment in purification engineering. They play an important role in the treatment of both domestic and industrial wastewater. Y-type strainers are favored for their various design and application advantages. They have effectively treated large volumes of wastewater in many industries. This helps reuse valuable water resources and saves significant amounts of water. The operational advantages of Y-type strainers include full automation, maintenance-free operation, a large filtration area, high filtration efficiency, a long service life, stainless steel construction, optional filtration accuracy, and a wide range of specifications. Compared to other filtration equipment, Y-type strainers are one of the most effective solutions in engineering. The water treated by a Y-type strainer meets national discharge standards and achieves the goal of water reuse.

Technical Specification

Normal Size Range: 1/2-24 Inch (DN15-DN600)
Normal Pressure Rating: PN16-PN420, Class 150-2500 LB
Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A352 LF2, A217 WC6, WC9
Filtering Accuracy: 18-30 mesh for water filter; 10-100 mesh for air filter; 100-480 mesh for oil filter
Temperature Range: -29°C to +425°C
End Connections: RF, RTJ, BW

Standards Compliance

Design and Manufacture: ANSI B16.34, API 6D
Face to Face (End to End): ANSI B16.10, API 6D
Flanged Connection: 2-24 Inch to ANSI B16.5
Test and Inspection: API 598, API 6D
Butt Welded End: ANSI B16.5

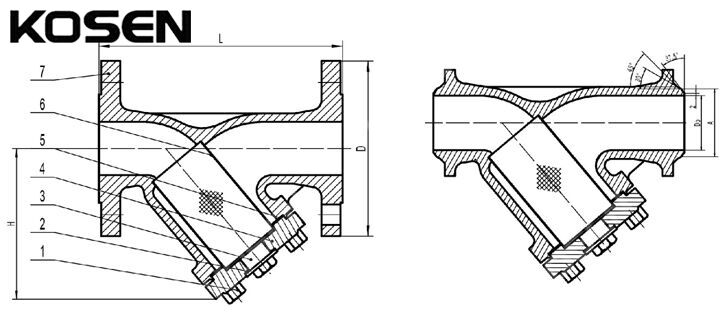

Material for Main Parts

No	Name of Parts	Carbon steel	Stainless steel	Stainless steel
1	Bolt	A193 B7	A193 B8	A193 B8M
2	Gasket	Copper Alloy	Copper Alloy	Copper Alloy
3	Drain plug	A105	SS 304	SS 316
4	Bonnet	A216 WCB	A351 CF8	A351 CF8M
5	Gasket	Graphite + SS	Graphite + SS	Graphite + SS
6	Screen	SS 304	SS 304	SS 316
7	Body	A216 WCB	A351 CF8	A351 CF8M
