Cast Bronze Angle Globe Valve, JIS F7334, BC6, 40A, 10K, FF

The Cast Bronze Angle Globe Valve Supplier offers a robust hose globe valve designed for demanding applications. This valve meets the JIS F7334 standard and is made from high-quality JIS BC6 cast bronze, ensuring durability and corrosion resistance. It features a 1-1/2 inch size, a pressure rating of 10K, and FF flanged ends for secure connections. Operated by a handwheel, it is ideal for use with sea water, providing reliable performance and ease of operation.

Product Name: Cast Bronze Hose Angle Globe Valve
Design Standard: JIS F7334
Body Material: Cast Bronze JIS BC6
Size: JIS 40A, 1-1/2 Inch
Pressure: JIS 10K
End Connection: FF Flanged
Operation: Handwheel
Medium: Sea Water, Fresh Water, Oil, etc
Temperature Range: -29°C to 345°C

Marine valves are specifically designed to control the pressure, flow rate, and direction of fluids in ship pipelines, ensuring they meet the stringent environmental conditions required on vessels. These valves are essential control devices for fluid pipelines, with their primary functions being to connect or cut off the flow of the pipeline medium, change the flow direction of the medium, adjust the pressure and flow rate of the medium, and protect the normal operation of pipeline equipment.

Materials of Main Parts

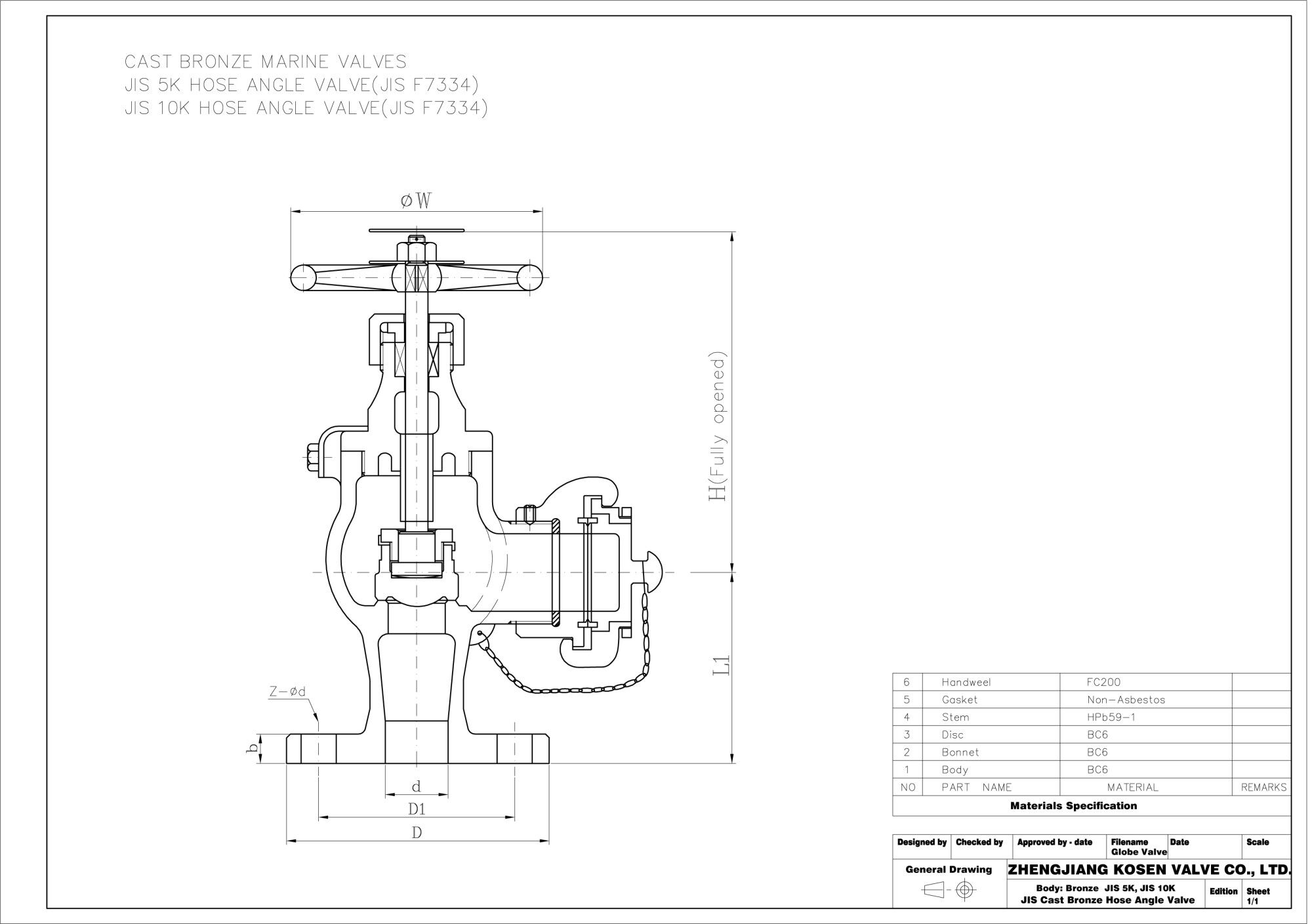

Technical Drawing
