Carbon Steel Barstock Ball Valve, A105, 1-1/2 Inch, 2000 PSI

The Carbon Steel Barstock Ball Valve Factory produces robust ball valves in compliance with ASME B16.34 and ASTM A105 standards. These valves are manufactured from high-quality carbon steel barstock, ensuring durability and strength. With a 1-piece design, a size of 1-1/2 inches (DN40), and a pressure rating of 2000 PSI, they are designed for high-pressure applications. The valves feature BSPT (British Standard Pipe Thread) threaded ends and come equipped with a lever for easy operation.

Product Name: Carbon Steel Barstock Ball Valve, 1PC
Type: Bar Stock Ball Valve
Design Standard: ASME B16.34
Body Material: ASTM A105
Size: 1-1/2 Inch, DN40
Pressure: 2000 PSI
End Connection: BSPT Threaded
Operation: Lever
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 150°C

Forged Steel Ball Valves are available in two primary body types: Two Piece Split Body and Three Piece Bolted Body. These valves are manufactured using high-quality forging materials, ensuring sufficient rigidity and strength under the maximum rated operating pressure. Unlike cast materials, forging eliminates inherent flaws, providing superior durability and reliability. The valves feature adequate wall thickness and are secured with high-strength tie bolts, which not only facilitate easy maintenance but also ensure the valve can withstand the stress of the pipeline. The internal components of the valve are meticulously designed and selected to guarantee reliable performance under a variety of working conditions.

Technical Specification

» Size Range: 1/2-2 Inch (DN15-DN50) (for Forged Items)
» Design Pressure: Class 150-1500 LB (PN10-PN250)
» Materials: Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel, etc
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L
» Seat Materials: PTFE, RPTFE, PEEK
» Ends Connections: SW, FNPT, BW
» Design and Manufacture: ASME B16.34
» Face to Face (End to End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded Ends: ANSI B16.5
» Threaded Ends: ASME B1.20.1
» Socket-Weld Ends: ASME B16.11

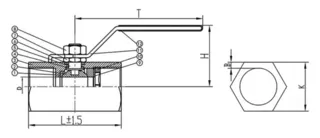

Structural Diagram

Product Features

The forged steel floating ball valves are available in three types: One Piece Uni-body, Two Piece Split Body, and Three Piece Bolted Body. These valves are designed and manufactured in accordance with the latest international standards, including API 6D, ASME B16.34, BS 5351, or their equivalents. They come with standard features such as fire safety, anti-static protection, and blow-out prevention.
