Bronze BC6 Marine Gate Valve, JIS F7368, 15A, 1/2 Inch, 10K

The Bronze BC6 Marine Gate Valve, manufactured to JIS F7368 and JIS 15A standards, features a non-rising stem wedge gate design for reliable flow control. With a 1/2-inch size and JIS 10K pressure rating, it is ideal for marine applications. The valve is handwheel operated and comes with flanged ends, ensuring secure and leak-proof connections in demanding environments.

Product Name: BC6 Marine Gate Valve
Structure: Non-rising Stem Wedge Gate Valve
Standard: JIS F7368
Body Material: Bronze BC6
Size: 15A, 1/2 Inch
Pressure: 10K
End Connection: Flanged (FF)
Operation: Handwheel

The Bronze Non-Rising Gate Valve is designed for reliable performance in a variety of applications, such as controlling the flow of sea water, fresh water, and oil. It features a non-rising wedge design, which ensures a space-efficient and durable operation, especially when there is limited vertical space. The valve's body is made from high-quality Bronze, offering excellent resistance to corrosion and wear.

Technical Specifications

Port Size: JIS 50A-65A, 2 Inch to 2-1/2 Inch
Pressure: JIS 5K, JIS 10K
Structure: Non-Rising Wedge Gate Valve
Temperature Range: -29°C to 345°C
Body Material: Bronze BC6, Bronze ASTM B148 C95800
Connection Type: FF Flange
Medium: Sea water, fresh water, oil, and other fluids

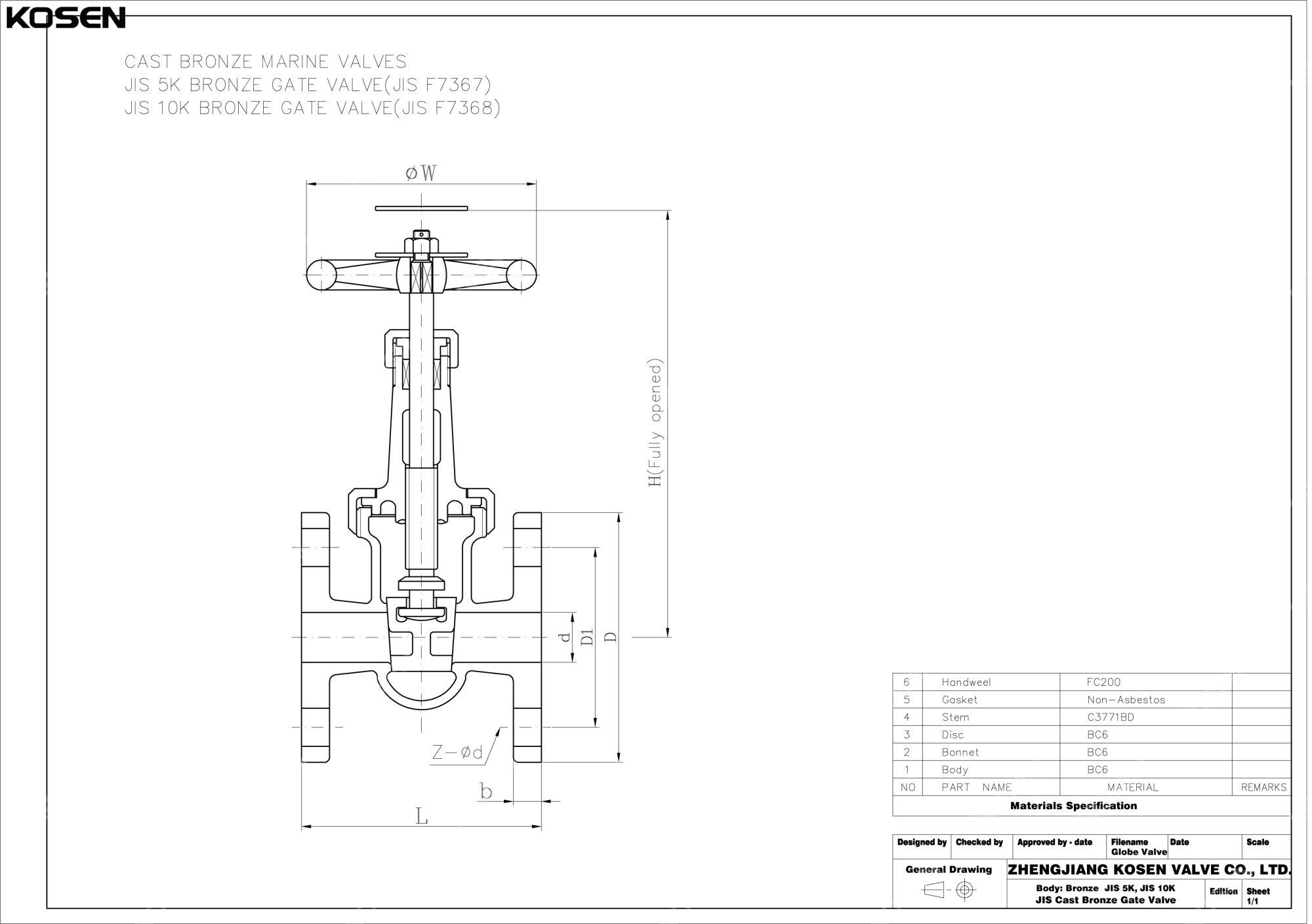

Materials of Main Parts
