Bimetallic Steam Trap, EN 26704, ASTM A216 WCB, DN15, PN16

Name: Bimetallic Steam Trap, EN 26704, ASTM A216 WCB, DN15, PN16
SKU: KV-20250721-ST-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Bimetallic Steam Trap Plant in China is a high-quality steam trap designed for efficient condensate removal. It features a cast carbon steel body (ASTM A216 WCB) with a DN15 (1/2 inch) size and a pressure rating of PN16 (Class 150 LB). The trap is compliant with international standards such as EN 26704, ISO 6552, and ASTM A216 WCB, ensuring reliability and durability. Its threaded ends facilitate easy installation and maintenance.

Request a quote

Detail Information

Product Name: Bimetallic Steam Trap
Design Standard: ISO 6552, EN 26704
Body Material: ASTM A216 WCB, Cast Carbon Steel
Size: DN15, 1/2 Inch
Pressure: PN16, Class 150 LB
End Connection: Threaded
Medium: Steam Condensate

Bimetallic steam traps can conserve energy by discharging sub-cooled condensate in applications that can utilize sensible heat. They are the most robust of all thermostatic steam traps, capable of withstanding water hammer and corrosive condensate.

Technical Specification

» Normal Size Range: 1/2-6 Inch (DN15-DN150)
» Normal Pressure Rating: PN16,PN25,Class 150 LB
» Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
» Maximum Allowable Pressure (PMA): 40 Bar g
» Maximum Allowable Temperature (TMA): 300°C
» Maximum Differential Pressure (ΔPMX): 32 Bar
» Medium: Steam condensate
Standards Compliance
» Design and Manufacture: ISO 6552; EN 26704
» Face to face(end to end): EN 26554
» Test and inspection: EN 26948

Application

Bimetallic steam traps are designed to conserve energy by discharging sub-cooled condensate in applications where sensible heat can be utilized. These traps are the most robust among all thermostatic steam traps, capable of withstanding water hammer and corrosive condensate.

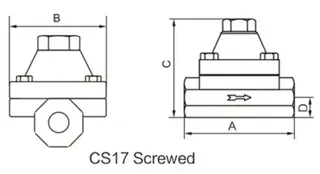

Structural diagram
