Ball Type Check Valve, ASTM A216 WCB, 2 Inch, 3000 PSI, NPT

Name: Ball Type Check Valve, ASTM A216 WCB, 2 Inch, 3000 PSI, NPT
SKU: KV-20250123-TCV-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We supply Ball Type Check Valves with a full port design and a carbon steel ASTM A216 WCB body. These 2-inch (DN50) valves have a pressure rating of 3000 PSI and meet NACE MR0175 requirements for resistance to sulfide stress cracking. They are equipped with NPT threaded ends for secure and easy installation.

Request a quote

Detail Information

Product Name: Ball Type Check Valve, Full Port
Body Material: ASTM A216 WCB
Size: 2 Inch, DN50
Pressure: 3000 PSI
End Connection: NPT
Nace: NACE MR0175

This ball-type check valve is available in ductile iron, carbon steel, and aluminum bronze, with sizes ranging from 1" to 2". Stainless steel balls are standard, ensuring extended valve life thanks to the patented Hinge-Works feature. This valve is suitable for a variety of industrial applications, including hydraulics, pneumatics, pumps, and plumbing. It is particularly ideal for oil & gas production lines where backflow prevention is crucial. The ball-type check valve offers simplicity and is easily repairable, effectively preventing backflow in the pipeline.

Technical Specifications

» Materials: Ductile Iron, Carbon Steel, Stainless Steel
» Size Ranges: NPS 1–2 Inch (DN25–DN50)
» Pressure Range: 1000 to 5000 PSI WP
Ductile Iron: 1000 to 2000 WOG
Carbon Steel and Stainless Steel: 2000 to 5000 WOG
» Seat and Seal: Viton
» NACE MR-0175 Compliance
» Ends: Threaded to ANSI B1.20.1 (NPT)
» Inspection and Test: According to API 598
» Medium: Water, Oil, Gas
» Temperature Range: -20°C to 80°C

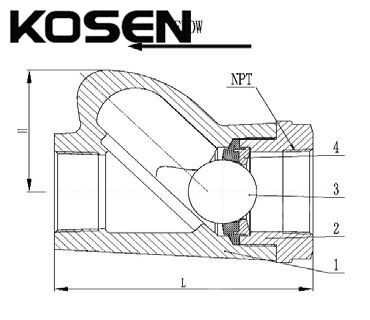

Main Parts and Materials

No.	Part Name	Material
1	Body	ASTM A395 DI	ASTM A216 WCB	ASTM A351 CF8M
2	Bonnet	ASTM A395 DI	ASTM A216 WCB	ASTM A351 CF8M
3	Ball	SS 316	SS 316	SS 316
4	Seat	VITON	VITON	VITON

Main Dimensions (mm)

Material	Size	Model	End	Pressure	L	H	Weight(kg)
Ductile Iron	1 Inch	KBD06-10	FNPT	1000	114	52	1.7
	1 Inch	KBD06-15	FNPT	1500	114	52	1.7
	1 Inch	KBD06-20	FNPT	2000	114	52	1.7
	2 Inch	KBD09-10	FNPT	1000	168	85	5.4
	2 Inch	KBD09-15	FNPT	1500	168	85	5.4
	2 Inch	KBD09-20	FNPT	2000	168	85	5.4
Carbon Steel	1 Inch	KBC06-20	FNPT	2000	114	52	1.75
	1 Inch	KBC06-30	FNPT	3000	114	52	1.75
	1 Inch	KBC06-50	FNPT	5000	114	52	1.75
	2 Inch	KBC09-20	FNPT	2000	168	85	5.65
	2 Inch	KBC09-30	FNPT	3000	168	85	5.65
	2 Inch	KBC09-50	FNPT	5000	168	85	5.65
Stainless Steel	1 Inch	KBS06-20	FNPT	2000	114	52	1.8
	1 Inch	KBS06-30	FNPT	3000	114	52	1.8
	1 Inch	KBS06-50	FNPT	5000	114	52	1.8
	2 Inch	KBS09-20	FNPT	2000	168	85	5.7
	2 Inch	KBS09-30	FNPT	3000	168	85	5.7
	2 Inch	KBS09-50	FNPT	5000	168	85	5.7
