ASTM B148 C95400 Concentric Butterfly Valve, API 609, 4 Inch

Product Name: Wafer Concentric Butterfly Valve
Design Standard: API 609
Body Material: ASTM B148 C95400
Size: 4 Inch, DN100
Pressure: Class 150 LB, PN20
End Connection: Wafer
Operation: Lever

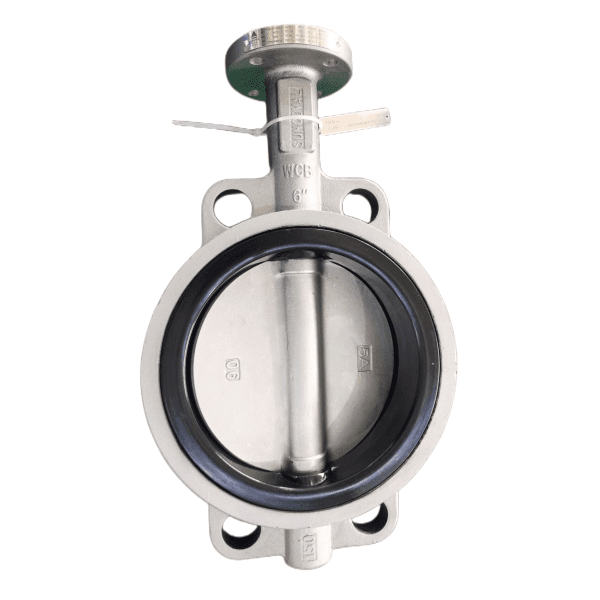

The Wafer Concentric Butterfly Valve is designed to maintain a seal against bi-directional pressure differentials, preventing backflow in systems intended for unidirectional flow. It achieves this with a tightly fitting seal, gasket, O-ring, and precision machining, featuring flat valve faces on both the upstream and downstream sides. The valve includes threaded inserts on both sides of the valve body, allowing installation using two sets of bolts without the need for nuts. The valve is installed between two flanges, with a separate set of bolts for each flange. This configuration enables either side of the piping system to be disconnected without disturbing the other side.

Technical Specifications

» Size Range: 2-24 Inch (DN50-DN600)
» Pressure Ratings: Class 150 LB, PN10, PN16
» Materials: GG25, GGG40, ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
» Optional Seat Materials: Resilient NBR, EPDM, VITON
» Operation: Handle, Handwheel, Pneumatic, Electric
» End Connections: Wafer, Lug, RF Flange
» Design and Manufacture Standards: GB/T 12228, API 609
» Face-to-Face (End-to-End) Standard: GB/T 12221
» Flanged Connection Standards: ANSI B16.5, GB/T 9113
» Test and Inspection Standards: API 598, GB/T 13927
» Temperature Range: -29°C to 120°C
» Medium: Water, Gas, Oil, etc.
