ASTM A217 WC6 Wafer Check Valve, API 594, 30 Inch, 600 LB

Product Name: ASTM A217 WC6 Wafer Check Valve
Type: Wafer Check Valve
Design Standard: API 594
Body Material: ASTM A217 WC6
Size: 30 Inch, DN750
Pressure: Class 600 LB, PN100
End Connection: Double Flanged

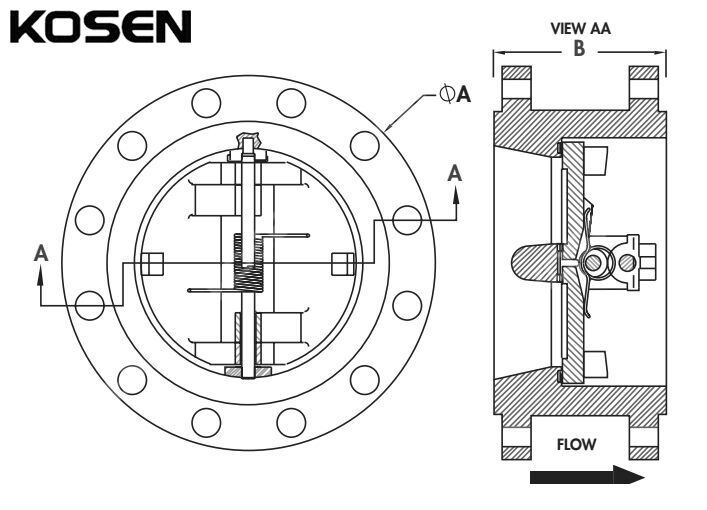

We are a specialized manufacturer of wafer check valves featuring a unique center vertical pin shaft design. When the valve opens, the resultant force of the fluid acts on the center of the disc's sealing face, while the counter spring support force is applied to the center of the disc surface. This design ensures that the root of the disc opens first, preventing wear on the sealing surface, unlike traditional valves. The wafer check valve operates automatically, opening and closing based on the flow of the medium, and is used to prevent reverse flow.

Technical Specifications

» Nominal Diameter: NPS 2–60 Inch (DN50–DN1500)
» Design Pressure: Class 150–2500 (PN10–PN420)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C
» End Connections: wafer, Lug, Flanged.
» Design and Manufacture Standards: API 594, API 6D, JB/T 8937
» Face-to-Face (End-to-End): API 594, API 6D, JB/T 8937, DIN 3202
» Flanged Connection Standards: ANSI B16.5, DIN 2543–48, JB/T 9112–24
» Test and Inspection Standards: API 598, DIN 3230, JB/T 9092
» Temperature Range: -29°C to 150°C
» Medium: Water, gas, oil, etc.

Product Features

» Light and Compact: Designed for easy installation and space-saving without compromising performance.
» Zero Leakage Sealing Design: Features a soft-seated design that ensures a tight seal with no leakage.
» Non-Slam Design: Prevents disc slamming, offering smooth operation and reducing wear.
» Bubble-Tight Closure: Guarantees reliable sealing, even under high-pressure conditions.
» Wide Disc Opening: Discs open up to 85°, minimizing pressure drop and enhancing flow efficiency.
