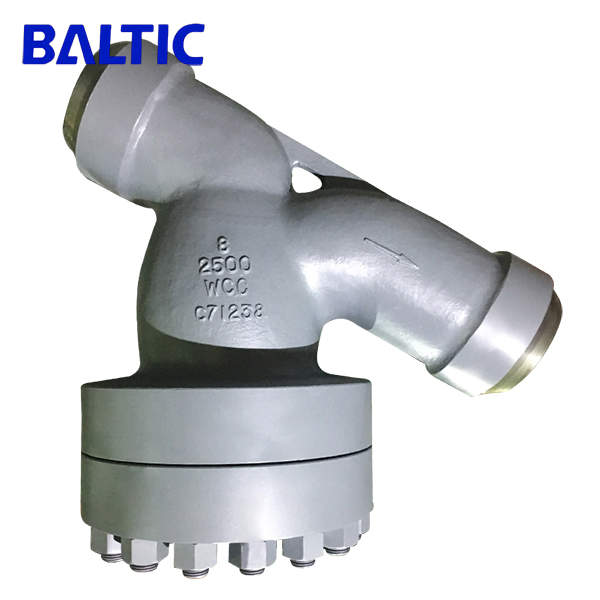

ASTM A216 WCC Y Strainer, ANSI B16.34, 6 Inch, CL2500 LB, BW

The ASTM A216 WCC Y Strainer is designed for high-temperature and steam applications, ensuring efficient filtration and protection of pipeline systems. Made from carbon steel (ASTM A216 WCC), it features a 6-inch size (DN150) and operates at a Class 2500 LB pressure rating and PN420. Compliant with ANSI B16.34 standards, the strainer is equipped with butt-welded ends for secure, leak-proof connections. Ideal for steam, high-temperature steam, and other demanding industrial environments, it provides reliable filtration and extends the lifespan of critical equipment.

Product Name: ASTM A216 WCC Y Strainer
Type: Y Type Strainer
Design Standard: ANSI B16.34
Body Material: ASTM A216 WCC
Size: 6 Inch, DN150
Pressure: Class 2500 LB, PN420
End Connection: Butt Welded
Medium: Steam, High-temperature Steam, Gas, Oil, etc.
Temperature Range: -29°C to 425°C

Product Description

The Y-Type Strainer is an essential high-efficiency filtration equipment used in purification systems for both domestic and industrial wastewater treatment. With its advanced design and functionality, it plays a critical role in enhancing water quality and enabling the effective reuse of valuable water resources. Y-type strainers have gained widespread popularity for their ability to filter large volumes of wastewater, making them an indispensable tool in various industries.
Key advantages of the Y-type strainer include full automation, low maintenance, a large filtration area, and high filtration efficiency. It boasts a long service life, constructed from durable stainless steel, and offers customizable filtration accuracy. The device ensures that treated water not only meets national discharge standards but also facilitates the recycling and reuse of water resources. Compared to other filtration equipment, Y-type strainers are among the most efficient and cost-effective solutions in engineering, playing a crucial role in conserving water and improving operational sustainability.

Technical Specification

» Normal Size Range: 1/2-24 Inch (DN15-DN600)
» Normal Pressure Rating: PN16-PN420, Class 150-2500 LB
» Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A352 LF2, A217 WC6, WC9
» Filtering Accuracy:
   18-30 mesh for water filter
   10-100 mesh for air filter
   100-480 mesh for oil filter
» Temperature Range: -29°C to +425°C
» End Connections: RF, RTJ, BW
» Medium: Steam, high-temperature steam, gas, oil

Standards Compliance

» Design and Manufacture: ANSI B16.34, API 600, API 6D
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5

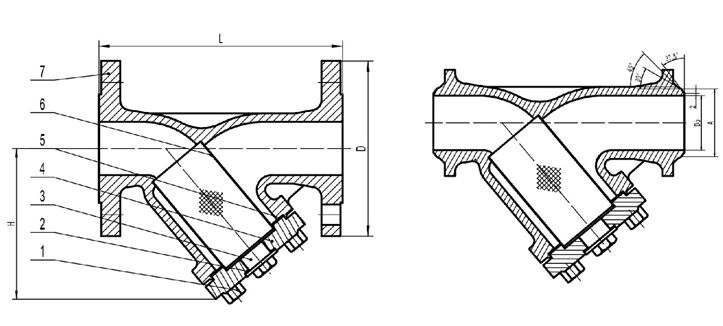

Material for Main Parts
