ASTM A216 WCB Y Strainers, ASME B16.34, 8 Inch, 300 LB, RF

The ASTM A216 WCB Y Strainer, manufactured according to ASME B16.34 standards, features a carbon steel body with a SS 304 screen for durability and efficient filtration. This 8-inch (DN200) strainer is rated for Class 300 LB and PN50 pressure classes and is equipped with RF flanged ends for secure, leak-tight connections.

Product Name: ASTM A216 WCB Y Strainers
Design Standard: ASME B16.34
Materials:
Body: ASTM A216 WCB
Screen: SS 304
Size: 8 Inch, DN200
Pressure: Class 300 LB, PN50
End Connection: RF Flanged

As an essential high-efficiency filtration device in purification systems, Y-type strainers play a significant role in the treatment of both domestic and industrial wastewater. With numerous advantages in design and application, they are widely favored in various industries. Y-type strainers have effectively processed large volumes of wastewater, contributing to the effective reuse of valuable water resources and helping conserve significant amounts of water.

The operational benefits of Y-type strainers include full automation, maintenance-free performance, a large filtration area, high filter efficiency, long service life, stainless steel construction, optional filtration accuracy, and a range of specifications. Compared to other filtration equipment, Y-type strainers are among the most efficient solutions in engineering, ensuring that water treated by the strainer meets national discharge standards and achieves the goal of reuse.

Technical Specification

» Normal Size Range: 1/2-24 Inch (DN15-DN600)
» Normal Pressure Rating: PN16-PN420, Class 150-2500 LB
» Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A352 LF2, A217 WC6, WC9
» Filtering Accuracy:
   18-30 mesh for water filter
   10-100 mesh for air filter
   100-480 mesh for oil filter
» Temperature Range: -29°C to +425°C
» End Connections: RF, RTJ, BW
» Medium: Steam, high-temperature steam, gas, oil

Standards Compliance

» Design and Manufacture: ANSI B16.34, API 6D
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5

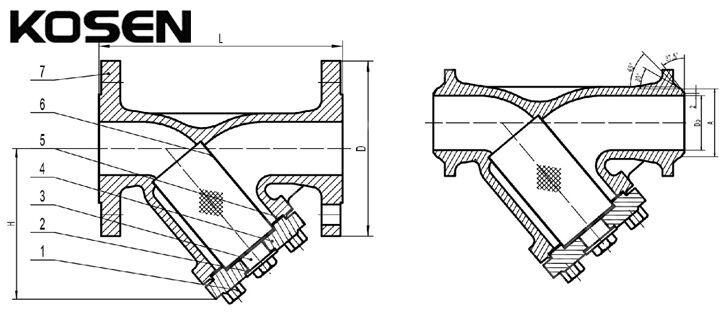

Material for Main Parts
