ASTM A216 WCB Basket Strainers, ANSI B16.34, 24 Inch, 150 LB

Our ASTM A216 WCB Basket Strainers are engineered to meet ANSI B16.34 standards, ensuring reliability and performance. These strainers feature a robust carbon steel body, providing durability and strength. With a 24-inch (DN600) size, they are designed for high-capacity applications. Rated for Pressure Class 150 LB and PN20, these strainers are suitable for a wide range of industrial processes. The RF flanged ends ensure secure and leak-free connections, making them an essential component for maintaining fluid system integrity.

Product Name: ASTM A216 WCB Basket Strainers
Type: Basket Type Strainer
Design Standard: ANSI B16.34
Body Material: ASTM A216 WCB
Size: 24 Inch, DN600
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Temperature Range: -29°C to 425°C
Medium: Water, Ammonia, Oil, Hydrocarbons, etc

The basket type strainer is a filtration device designed to remove solid impurities from fluid systems. It primarily consists of a connecting pipe, a main pipe, a filter basket, flanges, a flange cover, and fasteners. The fluid enters the strainer through the main pipe and passes through the filter basket, where solid impurity particles are trapped. The clean fluid then exits through the filter outlet. For maintenance, the screw plug at the bottom of the main pipe can be unscrewed to drain the fluid, and the flange cover can be removed to access the filter basket. After cleaning, the filter basket is reinstalled, making maintenance extremely convenient.

Technical Specification

» Product Model: SD16C
» Normal Size Range: 1-1/2 inches to 48 inches (DN40-DN600)
» Normal Pressure Rating: PN16-PN420, Class 150 to 2500 LB
» Material: 20# Steel, ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
» Temperature Range: -29°C to +425°C
» End Connections: RF, BW

Standards Compliance

» Design and Manufacture: ANSI B16.34, API 600, API 6D
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2 inches to 24 inches to ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.9

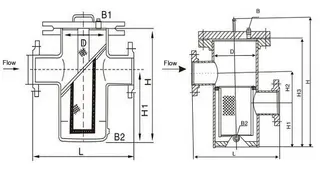

Structural Diagram
