API 6D Lubricated Plug Valve, A216 WCB, 3 Inch, 900 LB, RTJ

Name: API 6D Lubricated Plug Valve, A216 WCB, 3 Inch, 900 LB, RTJ
SKU: KV-20250124-LPV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The API 6D Lubricated Plug Valve, with a pressure-balanced design, features a carbon steel ASTM A216 WCB body for enhanced strength and durability. With a 3-inch (DN80) size, Class 900 LB, and PN150 pressure rating, it is built for high-pressure fluid control applications. The valve is equipped with RTJ (Ring-Type Joint) flanged ends for secure connections and reliable sealing. Its lubricated plug ensures smooth operation and minimizes wear.

Request a quote

Detail Information

Product Name: Pressure Balanced Lubricated Plug Valve
Design Standard: API 6D, API 599
Body Material: ASTM A216 WCB
Size: 3 Inch, DN80
Pressure: Class 900 LB, PN150
End Connection: RTJ Flanged

Lubricated Plug Valve Manufacturer, Factory, and Supplier

We offer high-quality lubricated plug valves at the best prices. Our flange-end lubricated plug valves can be designed according to ANSI standards and customized to meet customer requirements. These valves are widely used in industries such as petroleum, chemicals, pharmaceuticals, chemical fertilizers, power generation, and more. Lubricated plug valves are also known as pressure-balanced lubricated plug valves.

Technical Specifications

» Structure: Inverted pressure-balanced plug valve
» Nominal Diameter: NPS 1/2-16 Inch (DN15-DN400)
» Design Pressure: Class 150-1500 LB (PN20-PN260)
» Material:
ASTM A216 WCB, WCC
ASTM A217 WC6, WC9, C5
ASTM A352 LCB, LCC
ASTM A351 CF8, CF8M, CF3, CF3M, CF8C, CN3MN, CN7M
ASTM A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN)
ASTM B148 C95800, C95500
» Design Standard: API 6D, API 599
» Face to Face: ASME B16.10
» Test Standard: API 598, ISO 5208
» Connection End: RF, RTJ, BW
» Design Temperature: -46°C to +300°C
» Applicable Medium: Water, steam, oil, gas, etc.
» Operation: Lever, worm gear, electric, pneumatic
» Applications: Petrochemical, chemical, natural gas, LPG, HVAC, food, and pharmaceuticals
» Basic Functions
Function 1: Optional bore patterns: Venturi, Regular, Short, Standard
Function 2: Metal-to-metal seated design
Function 3: Injection grease sealed design (for stem and seats)
Function 4: Fire-safe design

Product Characteristics

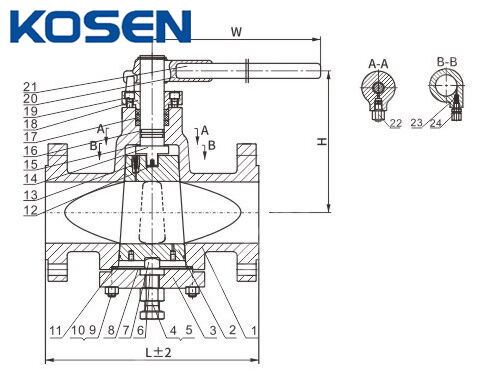

The inverted pressure balance plug valve design ensures balanced operation under pressure from different directions. Utilizing special sealing structures, it effectively prevents fluid leakage when the valve is closed.
