ANSI B16.34 Y Strainer, ASTM A216 WCB, 16 Inch, CL1500, RTJ

The ANSI B16.34 Y Strainer from our factory is a premium filtration solution for demanding industrial applications. It features a sturdy cast carbon steel body made from ASTM A216 WCB material, ensuring exceptional strength and durability. The strainer is equipped with a high-quality SS 304 screen, providing effective filtration for various fluids. With a large 16-inch (DN400) size and a high-pressure rating of 1500 LB (PN250), it is designed to handle significant flow rates and pressures. The RTJ flanged ends ensure a secure and reliable connection, minimizing the risk of leaks.

Product Name: ANSI B16.34 Y Strainer
Design Standard: ANSI B16.34
Body Material: ASTM A216 WCB
Screen Material: SS 304
Size: 16 Inch, DN400
Pressure: Class 1500 LB, PN250
End Connection: RTJ Flanged
Temperature Range: -29°C to 425°C
Medium: Steam, High-temperature Steam, Gas, Oil

As an essential high-efficiency filtration equipment in purification engineering, Y-type strainers have proven highly effective in treating both domestic and industrial wastewater. Their versatile design and application advantages have made them highly favored across various industries. Y-type strainers have effectively treated large volumes of wastewater, enabling the efficient reuse of valuable water resources and conserving significant amounts of water. Key operational advantages include full automation, maintenance-free operation, large filtration area, high filtration efficiency, long service life, stainless steel construction, optional filtration accuracy, and a comprehensive range of specifications. Compared to other filtration equipment, Y-type strainers are among the most effective solutions in engineering. The treated water quality not only meets national discharge standards but also achieves the goals of reuse and recycling.

Technical Specification

Product Model: GL41H
Normal Size Range: 1/2-24 Inch (DN15-DN600)
Normal Pressure Rating: PN16-PN420, Class 150-2500 LB
Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A350 LF2, A217 WC6, WC9
Filtering Accuracy:
Water Filter: 18 to 30 mesh
Air Filter: 10 to 100 mesh
Oil Filter: 100 to 480 mesh
Temperature Range: -29°C to +425°C
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)

Standards Compliance

Design and Manufacture: ANSI B16.34, API 600, API 6D
Face to Face (End to End): ANSI B16.10, API 6D
Flanged Connection: 2-24 Inch to ANSI B16.5
Test and Inspection: API 598, API 6D
Butt Welded End: ANSI B16.5

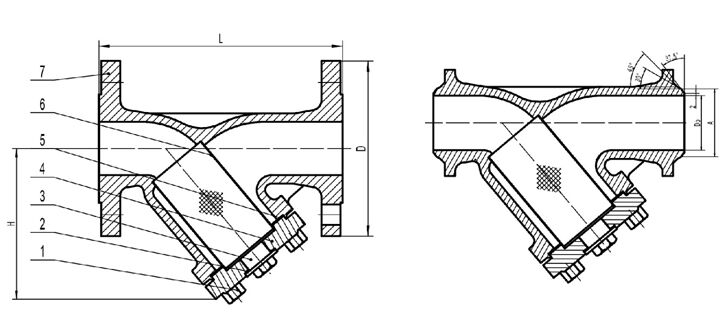

Structural Diagram
