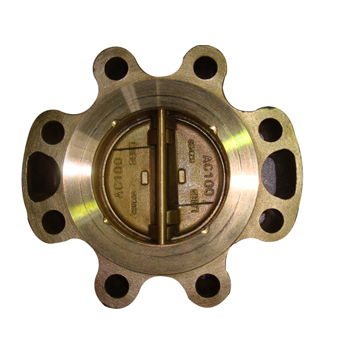

Aluminium Bronze Wafer Check Valve, API 594, C95800, 36 Inch

Product Name: Dual Plate Wafer Type Check Valve
Design Standard: API 594
Body Material: ASTM B148 C95800, Aluminium Bronze
Size: 36 Inch, DN900
Pressure: Class 150 LB, PN20
End Connection: Wafer

We are a specialized manufacturer of wafer check valves. The valve features a center vertical pin shaft. When the valve opens, the resultant force of the fluid acts on the center of the disc's sealing face, while the counter spring support force is applied at the center of the disc surface. This design ensures that the root of the disc opens first. As a result, it minimizes wear on the sealing surface, which is common in traditional valves, and enhances the durability of the valve seal. The wafer check valve is an automatic valve that opens and closes based on the flow of the medium, effectively preventing backflow.

Technical Specification

» Nominal Diameter: NPS 2–60 Inch (DN50–DN1500)
» Design Pressure: Class 150 LB, PN10, PN16
» Material Options: ASTM B148 C95400, C95500, C95800, B150 C63000, C63200
» End Connections: Wafer, Lug, Flanged
» Design & Manufacture Standards: API 594, API 6D, JB/T 8937
» Face-to-Face (End-to-End) Standards: API 594, API 6D, JB/T 8937, DIN 3202
» Flanged Connection Standards: ANSI B16.5, DIN 2543–48, JB/T 9112–24
» Test & Inspection Standards: API 598, DIN 3230, JB/T 9092
» Temperature Range: -29°C to 150°C
» Medium: Sea Water, Offshore, Marine

Features of Wafer Check Valve

» Lightweight and compact design
» Zero leakage sealing with soft-seated technology
» Non-slam design for smooth operation
» Bubble-tight closure for secure sealing
» Discs open up to 85° to minimize pressure drop
