Adjustable Safety Valve, ASTM B62 C83600, DN25, 1 Inch, PN10

Name: Adjustable Safety Valve, ASTM B62 C83600, DN25, 1 Inch, PN10
SKU: KV-20250721-SV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The China Adjustable Safety Valve Supplier offers a high-quality safety valve with a body made of leaded red brass (ASTM B62 C83600). This valve has a DN25 (1 inch) size and is rated for a pressure of PN10 and Class 150 LB. It features threaded ends for easy installation and is designed for reliable overpressure protection in various industrial applications, including steam, water, and oil systems.

Request a quote

Detail Information

Product Name: Adjustable Safety Valve
Body Material: ASTM B62 C83600, Leaded Red Brass
Size: DN25, 1 Inch
Pressure: PN10, Class 150 LB
End Connection: Threaded
Medium: Steam, Water, Oil, etc

Adjustable safety valves are widely used in various systems, including steam systems, boilers, oil systems, water systems, air systems, and more. Once installed in the piping system, the safety valve will automatically activate when the pressure of the medium reaches the set value. It then releases excess pressure to protect the system.

Technical Specification

» Product model: S10S
» Normal Size Range: 1/2-2 Inch
» Normal Pressure Rating: PN10
» Operating pressure: 0.1-40 bar
» Materials: Bronze ASTM B62 C83600
» Ends Connections: BSP Thread, NPT Thread

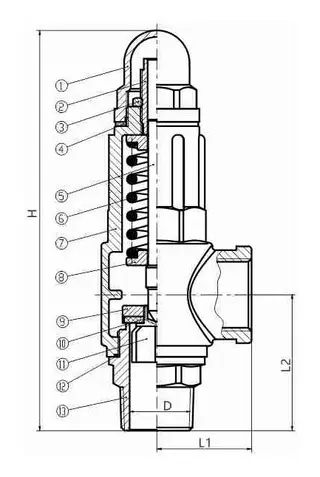

Structural Diagram

Main Parts and Materials

No	Name of Parts	Materials
1	Cap	CW617N
2	Adjust Screw	SS 304
3	Nut	SS 304
4	Gasket Ring	PTFE
5	Stem	SS 304
6	Spring	SS 304
7	Body	Bronze ASTM B62 C83600
8	Spring Seat	SS 304
9	Disc	SS 304
10	Gasket	PTFE,FKM,EPDM,RPTFE
11	Buffer	CW617N
12	Gasket Ring	PTFE
13	Seat	SS 304

Main Dimensions

Inlet	D	Outlet	Lift	L1	L2	H
1/2 Inch	13	1/2 Inch	0.5	31	48	136
3/4 Inch	19	3/4 Inch	0.7	35	55	145
1 Inch	25	1 Inch	0.9	39.5	65	175
1-1/4 Inch	31.5	1-1/4 Inch	1.2	50.5	75	197
1-1/2 Inch	37	1-1/2 Inch	1.3	59	86	224
2 Inch	47	2 Inch	1.6	67	100	257
