2 Way Manifold Valve, SS 316L, 1/2 IN, DN15, 6000 PSI, FNPT

We are a top China supplier of 2-way manifold valves, featuring a stainless steel SS 316L body for superior durability and corrosion resistance. These valves have a 1/2 inch (DN15) size and can handle pressures up to 6000 PSI, making them ideal for high-pressure applications. Equipped with female NPT threaded ends for secure and easy connections, these valves provide reliable flow control in various industrial settings.

Product Name: 2 Way Manifold Valve
Body Material: Stainless Steel SS 316L
Size: 1/2 Inch, DN15
Pressure: 6000 PSI
End Connection: FNPT (Female NPT)
Temperature Range: -120°C to 500°C

The 2-Way Manifold Valve is a type of high-pressure valve that has been widely used in various industries, including super hard material manufacturing, chemical and petrochemical industries, processing technology, isostatic pressure treatment, ultra-high static pressure extrusion, powder metallurgy, metal forming, and geophysical and geological research fields. It is designed to control the flow of various types of fluids, such as air, water, steam, corrosive media, mud, oil products, liquid metals, and radioactive media. The valve's opening and closing mechanism consists of a disc-shaped valve plate that rotates around its own axis inside the valve body to achieve the purpose of opening, closing, or adjusting the flow.

Main Parameters

» Nominal Diameter: 1/8-1 Inch
» Pressure Rating: 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI
» Working Temperature: -120°C to 500°C (range varies with pressure)
» Main Materials: SS 316, SS 304, SS 316Ti, Copper, Brass, Duplex, Carbon Steel (CS)
» Functions: 2-Way, 3-Way, 5-Way
» Body Types: R-Type, T-Type, H-Type
» Body Shapes: Square, Rectangle
» Body Construction: Bar Stock, Forged
» Handle: Bar T-Handle

Product Features

» Balanced Operation: It is essential to use a balance valve during installation and removal to prevent damage due to differential pressure. Without a balance valve, even a small differential pressure (e.g., 60 kPa) can cause significant issues, especially when the pipeline pressure is high (e.g., 1 MPa). Directly connecting either the positive or negative pressure chamber to the atmosphere (equivalent to 0.1 MPa) can result in a differential pressure that far exceeds the set value, potentially damaging the valve.
» Mounting Flexibility: The 2-Way Manifold Valve is designed to be closely mounted to differential pressure instruments, orifice changer fittings, or flanges. The flanged outlet can be directly mounted to the pressure transmitter body.
» Global Distribution: Our Manifold Mount 2-Way Valves are supplied to various companies across different industries worldwide.

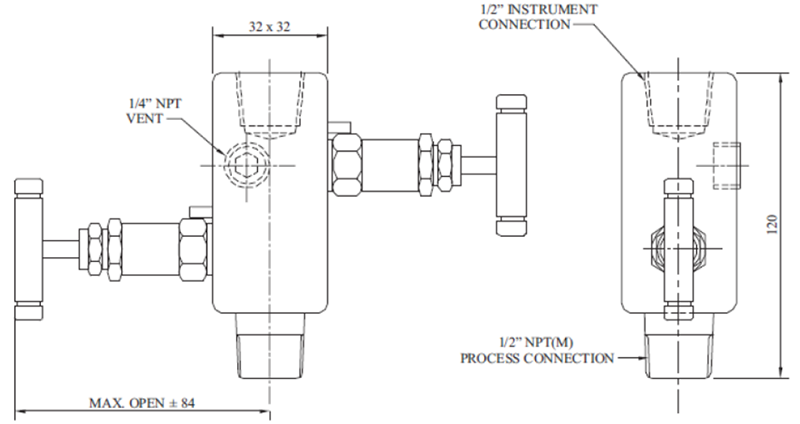

Structural Diagram
