Triple Eccentric Jacketed Butterfly Valves, EN 593, Q235B

Name: Triple Eccentric Jacketed Butterfly Valves, EN 593, Q235B
SKU: Kelly-BTV-20241114-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

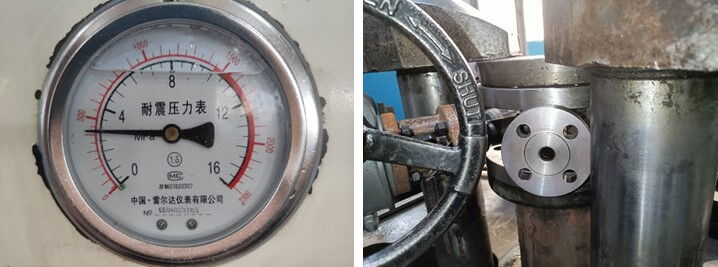

This DN65 x 100 PN25 triple eccentric jacketed metal-seated butterfly valve is engineered to EN 593 standards, with a Q235B body for enhanced durability. Featuring an insulation jacket and triple eccentric design, it undergoes a two-way 1:1 pressure test to ensure reliability. The valve connects according to EN 1092-1 B1 specifications and operates with a turbine for precise control in high-pressure applications.

Request a quote

Quick Detail

Type	Triple Eccentric Jacketed Metal Seated Butterfly Valve
Size	DN65X100
Pressure	PN25
Connection	EN 1092-1 B1
Operation	Turbine Operation
Body Material	Q235B
Design Norm	EN 593
Valve Body Length	EN 558
Flange Connection Dimensions	EN 1092-1
Test & Inspection Code	EN 12266
Temperature	-29 - 150°C
Applicable Medium	Water, Oil and Gas

Detail Information

Triple Eccentric Butterfly Valve, EN 593, DN65 X 100, PN25, Metal Seated.

Features

1. Bidirectional Sealing: Offers reliable sealing in both flow directions, ensuring high sealing performance even in complex operating conditions.

2. Enhanced Operability: Designed for ease of use in large-diameter pipelines, it facilitates frequent switching operations, reduces operating torque, and enhances overall control efficiency.

Technical Drawing
