Three-piece Turbine Trunnion Mounted Ball Valve, 4 IN,900 LB
Key Specifications / Features
We Provide Three-piece Trunnion Mounted Ball Valves, 3PC Trunnion Ball Valves, Turbine Operation, 4 Inch, 900 LB, ASTM A105N+INCONEL 625 CLAD, API 6D, RF.
Request a quote
Quick Detail
| Type | Ball Valve |
| Size | 4" |
| Pressure | 900LB |
| Connection | RF |
| Operation | Turbine Operation |
| Body Material | A105N+INCONEL 625 CLAD(3mm) |
| Design Norm | API 6D |
| Pressure/ Temperature | ASME B16.34 |
| Face to Face | API 6D |
| Flange | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -29 - 120°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
4" 900LB Three-piece Trunnion Mounted Ball Valve API 6D Turbine
Introduction
4" 900LB ball valve is made according to API 6D standards. The valve body is made of A105N+INCONEL 625 CLAD(3mm). It has the structural characteristics of three-piece, side-mounted, reduced diameter, fixed ball, fireproof and anti-static, valve rod anti-flying, valve seat self-relief, two-way, with lock. Its connection mode is RF. And it has turbine operation mode.
Features
1. Simple structure, convenient maintenance, convenient operation, quick opening and closing;
2. During operation, all the forces generated by the fluid pressure in front of the valve on the ball are transmitted to the bearing, and the ball will not move toward the valve seat.
Technical Drawing

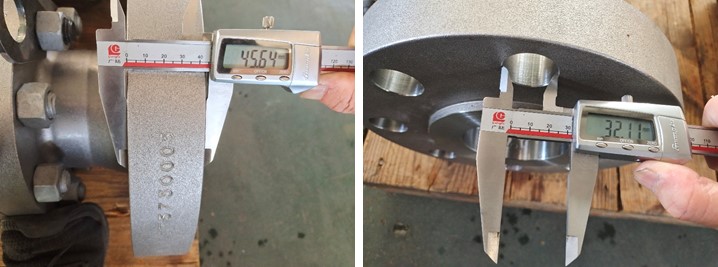

Dimension Checking

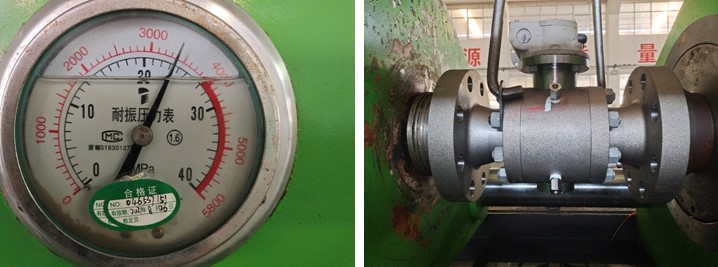

Pressure Testing
Painting

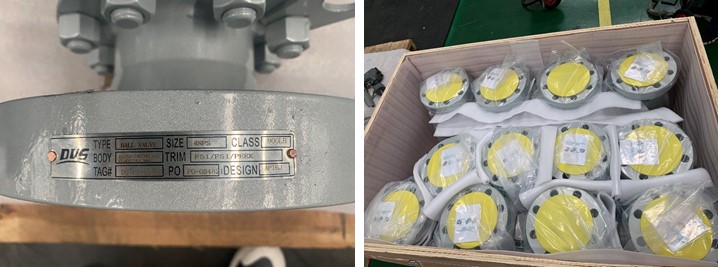

Nameplate & Packing
Introduction
4" 900LB ball valve is made according to API 6D standards. The valve body is made of A105N+INCONEL 625 CLAD(3mm). It has the structural characteristics of three-piece, side-mounted, reduced diameter, fixed ball, fireproof and anti-static, valve rod anti-flying, valve seat self-relief, two-way, with lock. Its connection mode is RF. And it has turbine operation mode.
Features
1. Simple structure, convenient maintenance, convenient operation, quick opening and closing;
2. During operation, all the forces generated by the fluid pressure in front of the valve on the ball are transmitted to the bearing, and the ball will not move toward the valve seat.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2"-60" (DN50~DN1500)
End connection: BW, SW, Flange, Threaded
Pressure range: 150lbs-2500lbs (PN16-PN420)
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas over oil actuator
Working temperature: -46℃- +200℃
Normal diameter: 2"-60" (DN50~DN1500)
End connection: BW, SW, Flange, Threaded
Pressure range: 150lbs-2500lbs (PN16-PN420)
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas over oil actuator
Working temperature: -46℃- +200℃
Keywords of Three-piece Turbine Trunnion Mounted Ball Valve, 4 IN,900 LB
4" 900LB Three-piece Ball Valve
API 6D Trunnion Mounted Ball Valve
4" Trunnion Mounted Ball Valve
900LB Trunnion Mounted Ball Valve
Three-piece Trunnion Mounted Ball Valve
Turbine Trunnion Mounted Ball Valve
API 6D Trunnion Mounted Ball Valve
4" Trunnion Mounted Ball Valve
900LB Trunnion Mounted Ball Valve
Three-piece Trunnion Mounted Ball Valve
Turbine Trunnion Mounted Ball Valve
