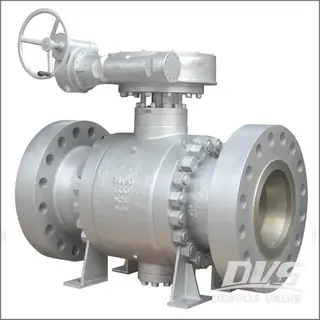

Reduced Bore Ball Valve, WCB, API 6D, 24 X 20IN, CL1500, RF
Model Number: CS VB 18
Key Specifications / Features
China Reduced Bore Ball Valve Supplier Kelly Offers Reduced Bore Ball Valve, WCB Material, API 6D Standard, 24 X 20 Inch, Class 1500, Raised Face.
Detail Information
Valve Description:
Design Standard: API 6D.
Body Material: WCB.
Nominal Diameter: 24" X 20".
Pressure: CL1500.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+200℃.
Mode of Operation: Gearbox.
Test and Inspection: API 6D, API598.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: 150lbs~2500lbs(PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃~+200℃.
Design Standard: API 6D.
Body Material: WCB.
Nominal Diameter: 24" X 20".
Pressure: CL1500.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+200℃.
Mode of Operation: Gearbox.
Test and Inspection: API 6D, API598.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: 150lbs~2500lbs(PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃~+200℃.
