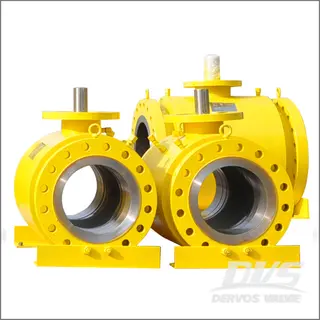

Jacketed Ball Valve, WCB, API 6D, DN600, PN50, Raised Face
Model Number: CS VB 23
Key Specifications / Features
China Jacketed Ball Valve Manufacturer Kelly Offers Jacketed Ball Valve, WCB Body Material, API 6D Design Standard, DN600, PN50, Raised Face End.
Detail Information
Valve Description:
Design Standard: API 6D
Body Material: WCB.
Nominal Diameter: 24".
Pressure: CL300.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature:-29℃~+200℃.
Mode of Operation: Bare Shaft.
Test and Inspection: API 6D, API598.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: 150lbs~2500lbs(PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃~+200℃.
Design Standard: API 6D
Body Material: WCB.
Nominal Diameter: 24".
Pressure: CL300.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature:-29℃~+200℃.
Mode of Operation: Bare Shaft.
Test and Inspection: API 6D, API598.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: 150lbs~2500lbs(PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃~+200℃.
