EN 13709 Floating Ball Valve, ASTM A182 F316, DN40, PN40, RF

Name: EN 13709 Floating Ball Valve, ASTM A182 F316, DN40, PN40, RF
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We Provide EN 13709 Floating Ball Valves, SS 316, ASTM A182 F316, DN40, PN40, Lever Operated, 1 1/2 Inch, Structural Length 200 mm, RF Flanged Ends.

Request a quote

Quick Detail

Type	Floating Ball Valve
Size	DN40
Pressure	PN40
Connection	RF
Operation	Lever
Body Material	ASTM A182 F316
Design Norm	EN 13709
Face-to-Face Dimension	EN 558
Flange End Dimension(RF)	EN 1092
Test & Inspection Code	EN 12266
Temperature	-29 - 120°C
Applicable Medium	Water, Oil and Gas

Detail Information

DN40 PN40 Floating Ball Valve F316 RF EN 13709

Introduction

DN40 PN40 Floating Ball Valve is made according to EN 13709 standard. The valve body is made of ASTM A182 F316. It has the structural characteristics of a Floating ball and a structural length of 200mm. Its connection mode is RF. And it has a lever operation mode.

Features

1. The flow resistance is minimal, and the medium can flow almost without loss;
2. Quick opening and closing, small size, lightweight, convenient for pipeline installation.

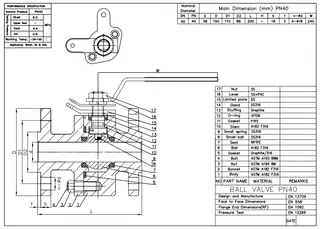

Technical Drawing

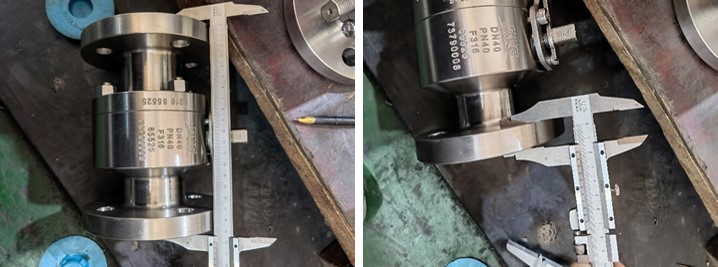

Dimension Checking

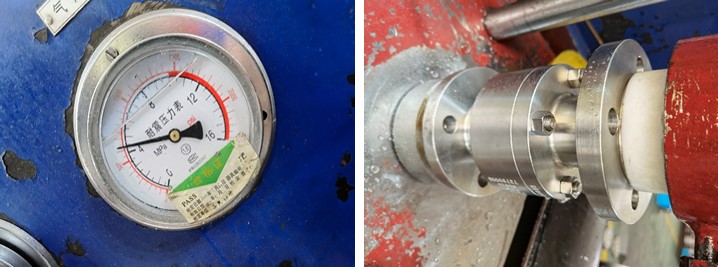

Pressure Testing

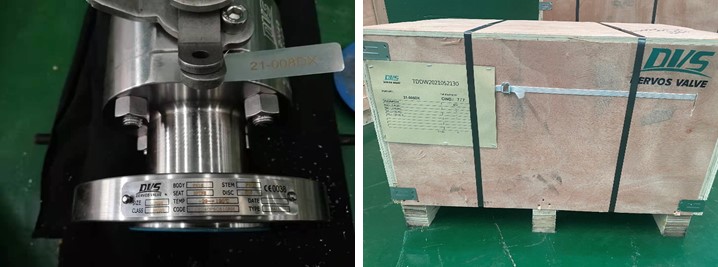

Nameplate & Packing

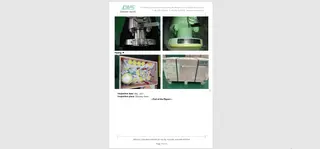

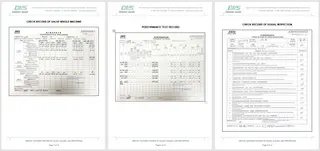

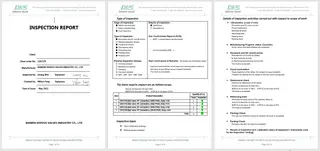

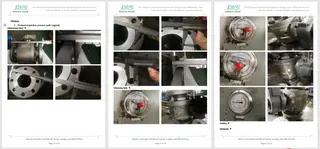

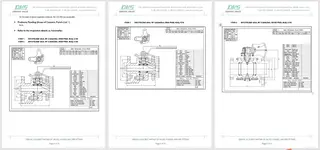

Inspection report
