EN 12516 Globe Valve, 2 Inch, DN50, PN40, ASTM A216 WCB, RF

Name: EN 12516 Globe Valve, 2 Inch, DN50, PN40, ASTM A216 WCB, RF
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We Provide EN 12516 Globe Valves, Three-way Globe Valves, Cast Steel ASTM A216 WCB, 2 Inch, DN50, PN40, EN 12516, RF End, and Handwheel Operation.

Request a quote

Quick Detail

Type	Globe Valve
Size	DN50
Pressure	PN40
Connection	RF
Operation	Handwheel Operation
Body Material	ASTM A216 WCB
Design Norm	EN12516
Face-to-Face Dimension	EN558-1/1
Flange Dimension	EN1092-1/B1
Test & Inspection Code	EN12266-1/2
Temperature	-29 - 120°C
Applicable Medium	Water, Oil and Gas

Detail Information

DN50 PN40 Cast Steel Globe Valve WCB RF EN12516

Introduction

DN50 PN40 globe valve is made according to EN12516 standards. The valve body is made of WCB. It has the structural characteristics of a three-way form. Its connection mode is RF. And it has hand wheel operation mode.

Features

1. High stability and good sealing performance;
2. Wear resistance, high-temperature resistance, corrosion resistance, good scratch resistance and long service life.

Technical Drawing

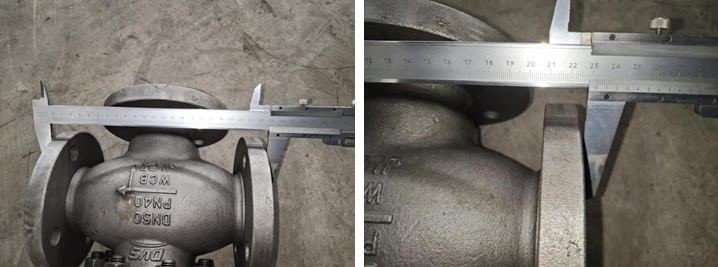

Dimension Checking

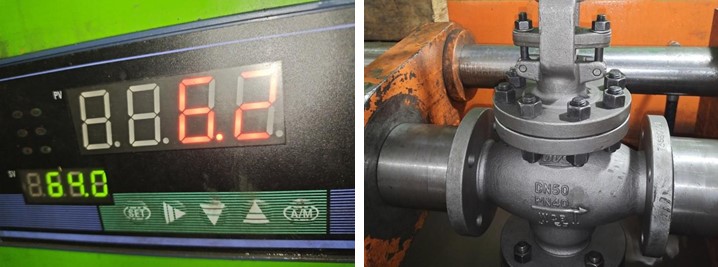

Pressure Testing

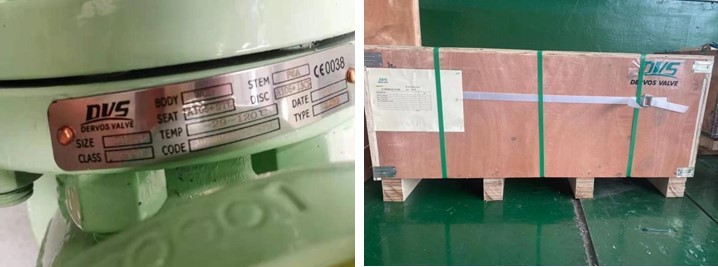

Nameplate & Packing

Inspection report
