Double Eccentric Lug Butterfly Valve, 4 Inch, 150 LB, CF8M
Key Specifications / Features
4 Inch 150 LB butterfly valve is made according to API 609 standard. The valve body is made of CF8M. It has the structural characteristics of double eccentric, high performance, and zero leakage. Its connection mode is lug. It has a lever operation mode.
Detail Information
4 Inch 150 LB Double Eccentric Butterfly Valve CF8M Lug API 609 Lever
Features
1. Reasonable design, compact structure, easy installation and disassembly, and easy maintenance;
2. Adopting an eccentric structure to reduce the friction of the sealing ring and extend the service life of the valve.
Technical Drawing

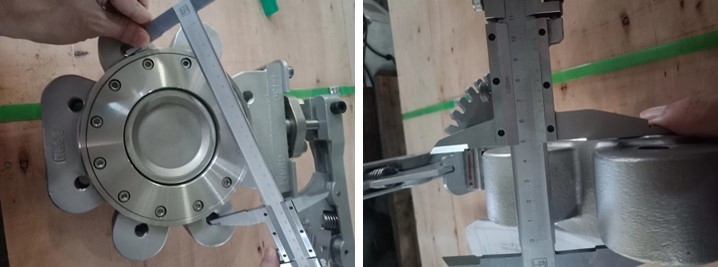

Dimension Checking

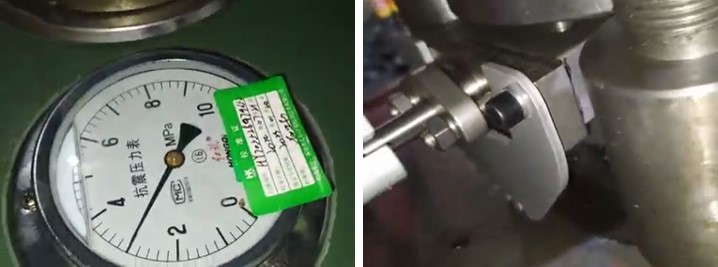

Pressure Testing

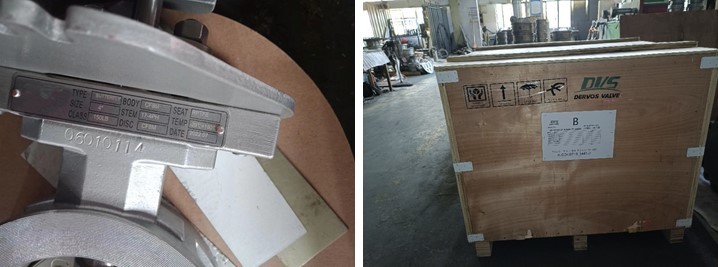

Nameplate & Packing
Inspection report
Features
1. Reasonable design, compact structure, easy installation and disassembly, and easy maintenance;
2. Adopting an eccentric structure to reduce the friction of the sealing ring and extend the service life of the valve.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
