DIN 3840 Swing Check Valve, DN100, PN25, ASTM A351 CF8, BW
Key Specifications / Features
DN100 PN25 check valve is made according to DIN 3840 standard. The valve body is made of ASTM A351 CF8. It has the structural characteristics of bolt cover, swing type and structural length of 350mm. Its connection mode is BW.
Detail Information
DN100 PN25 Swing Check Valve BW CF8 DIN 3840 Cast Steel
Features
1. Effectively preventing media backflow in pipelines;
2. The closing stroke of the valve disc is short, significantly reducing water hammer phenomenon.
Technical Drawing

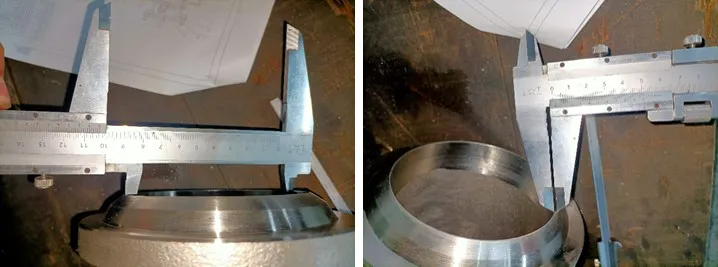

Dimension Checking

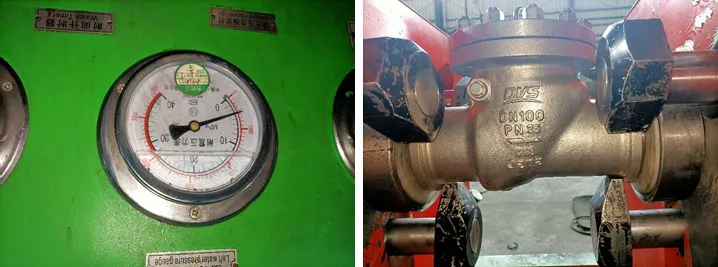

Pressure Testing
Nameplate & Packing
Inspection report
Features
1. Effectively preventing media backflow in pipelines;
2. The closing stroke of the valve disc is short, significantly reducing water hammer phenomenon.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
