BS EN 13709 Globe Valve, EN 10213 1.0619, DN50, PN40, Flanged
Key Specifications / Features
The DN50 PN40 cast steel globe valve is manufactured in compliance with BS EN 13709 standards, featuring an EN 10213 1.0619 cast steel body for durability and strength. It is designed with a flat valve disc and a welded valve seat, ensuring reliable sealing and performance. The valve is equipped with EN 1092-1 B flanged connections for secure installation, and it operates through a handwheel for precise flow control. This valve is an ideal solution for various industrial applications requiring high performance and durability.
Request a quote
Quick Detail
| Type | Cast Steel Globe Valve |
| Size | DN50 |
| Pressure | PN40 |
| Connection | EN1092-1 B |
| Operation | Hand Wheel |
| Body Material | EN 10213 1.0619 |
| Design Norm | BS EN 13709 |
| Face to Face Dimensions | BS EN 558-1 S.1 |
| Flange Ends Dimensions | BS EN 1092-B1 |
| Test & Inspection Code | BS EN 12266 |
| Applicable Medium | Water, Oil and Gas |
Detail Information
On this page
EN 10213 1.0619 Cast Steel Globe Valve, DN50, PN40, BS EN 13709 Design.
2. When the cast steel globe valve is fully open, fluid can pass smoothly with relatively low fluid resistance, which is beneficial for improving the flow efficiency of the system.
Features
1. The valve disc and seat of the valve are usually precision machined, with good sealing performance, which can effectively prevent leakage and extend the service life.2. When the cast steel globe valve is fully open, fluid can pass smoothly with relatively low fluid resistance, which is beneficial for improving the flow efficiency of the system.

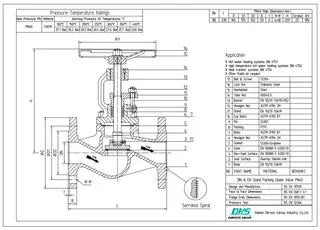

Technical Drawing

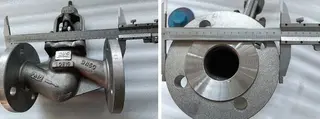

Dimension Checking

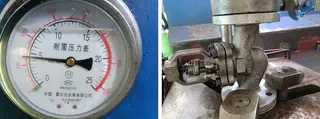

Pressure Testing

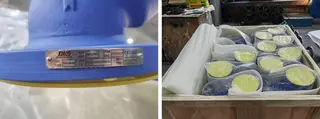

Nameplate & Packing

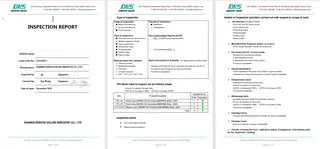

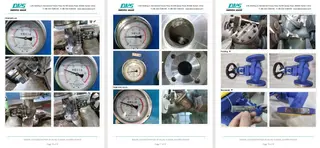

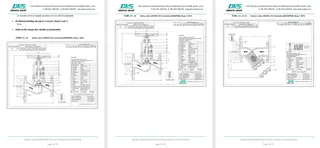

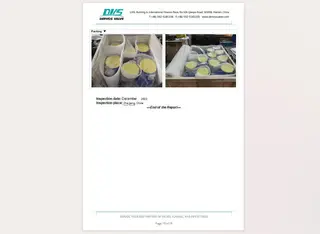

Inspection Report
