ASTM A995 5A Wafer Check Valve, API 594, 4 Inch, 150 LB

Name: ASTM A995 5A Wafer Check Valve, API 594, 4 Inch, 150 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We Provide ASTM A995 5A Wafer Check Valves, ASTM A995 5A Dual Plate Check Valves, 4 Inch, DN100, Class 150 lB, PN20, API 594, and Wafer Connection.

Request a quote

Quick Detail

Type	Wafer Check Valve
Size	4"
Pressure	150LB
Connection	Wafer Type
Body Material	A995 5A
Design Norm	API 594
Pressure-temperature	ANSI B16.34
Flange Ends Dimension	ANSI B16.5
Face to Face Dimension	API 594
Test & Inspection Code	API 598
Temperature	≤300°C
Applicable Medium	Water, Oil and Gas

Detail Information

4" 150 LB Dual Plate Wafer Check Valve API 594 A995 5A

Introduction

4" 150 LB wafer check valve is made according to API 594 standard. The valve body is made of ASTM A995 5A. It has the structural characteristics of a built-in type and double plate. Its connection mode is wafer type.

Features

1. The structural performance is safe and reliable, the anti-interference is strong, and the closing speed is fast;
2. Short structure length, good rigidity and easy installation;
3. The material of the main parts can be selected in a wide range, and the applicable medium range is wide.

Technical Drawing

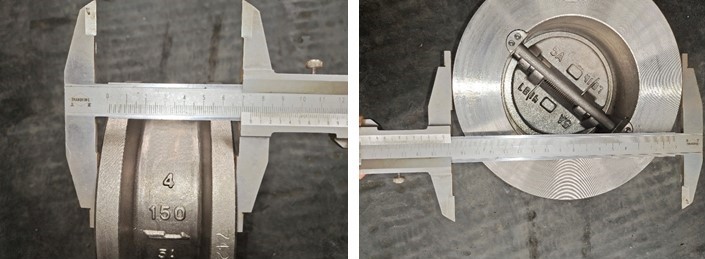

Dimension Checking

Pressure Testing

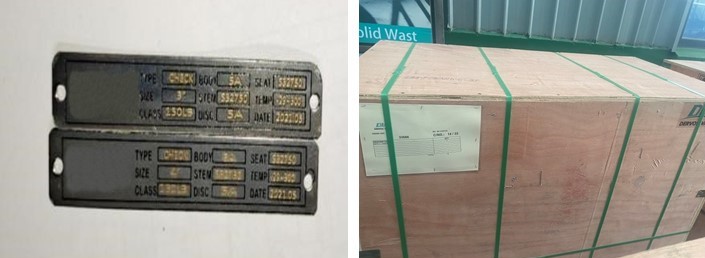

Nameplate & Packing

Inspection report
