ASTM A182 F51 Ball Valve, API 6D, 8×6 Inch, 2500 LB, RTJ

Name: ASTM A182 F51 Ball Valve, API 6D, 8×6 Inch, 2500 LB, RTJ
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We Provide ASTM A182 F51 Ball Valves, ASTM A182 F51 Trunnion Mounted Ball Valves, Reduce Bore 8×6 Inch, Class 2500 LB, RTJ, API 6D, Worm Gear Operated.

Request a quote

Quick Detail

Type	Ball Valve
Size	8"×6"
Pressure	2500 LB
Connection	RTJ
Operation	Worm Gear
Body Material	F51
Manufacture	API 6D
Pressure/temperature	ASME B16.34
Face to face	API 6D
Flange	ASME B16.5
Test & Inspection Code	API 6D
Work Temperature	-29 - 121°C
Applicable Medium	Water, Oil and Gas

Detail Information

8"×6" 2500 LB Trunnion Mounted Ball Valve RTJ API 6D F51

Introduction
8"×6" 2500LB ball valve is made according to API 6D standard. The valve body is made of F51. It has the structural characteristics of an anti-fire, anti-static and anti-flying valve stem. The valve uses low leakage packing, which conforms to the low leakage design. The valve meets the requirements of NACE MR0175

Features
1. The valve conforms to a low leakage design;
2. The operation is labor-saving and the sealing performance is reliable.

Technical Drawing

Dimension Checking

Pressure Testing

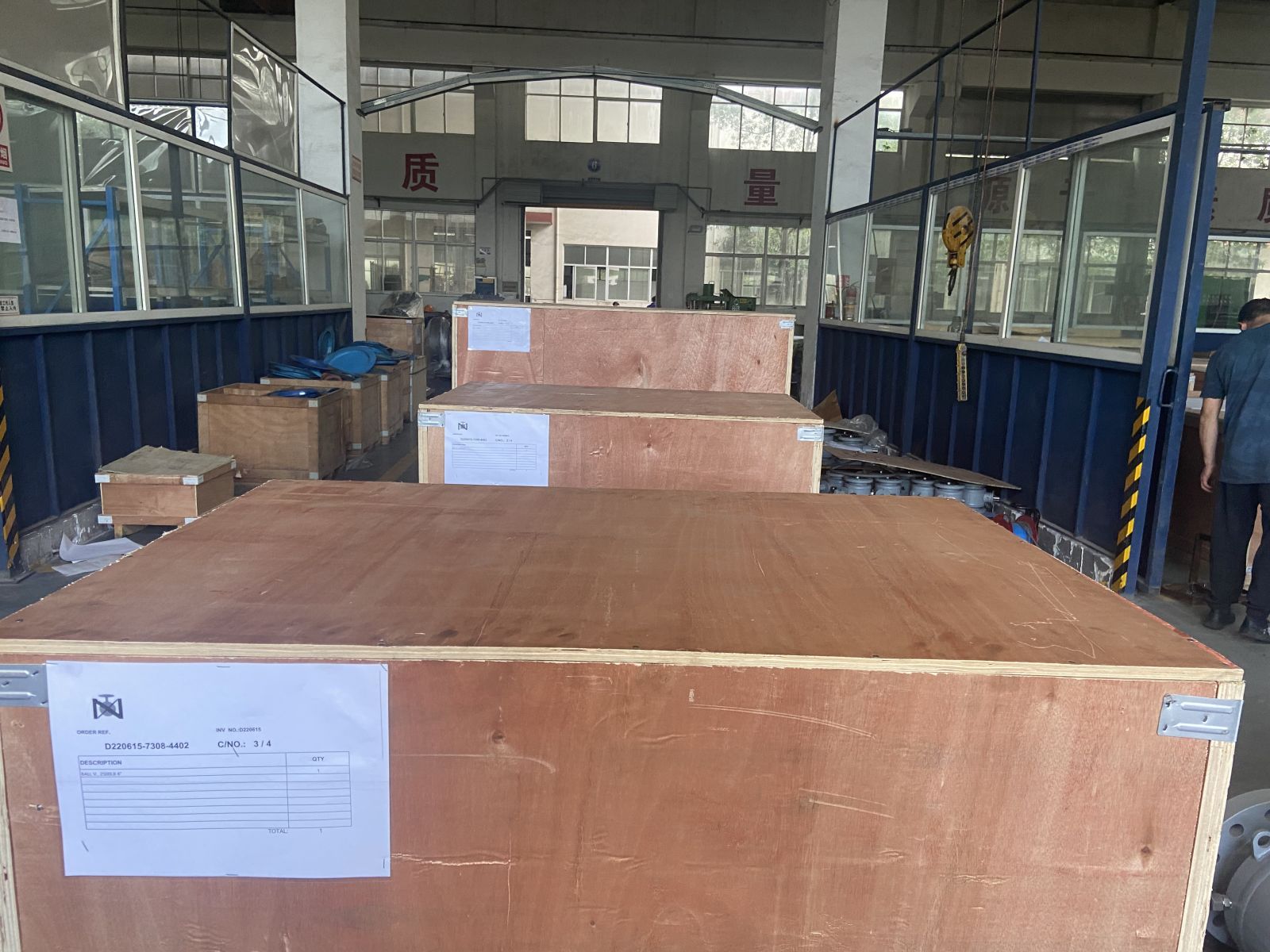

Nameplate & Packing

Product Application

Kelly valves can be widely used in various industries, such as petrochemical, pipeline, oil & gas, marine, water treatment, power station industries, etc.
