ASME B16.34 Y Type Strainer, ASTM A351 CF8, 4 Inch, 150 LB

Name: ASME B16.34 Y Type Strainer, ASTM A351 CF8, 4 Inch, 150 LB
SKU: Kelly-YST-20240927-04
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The 4-inch Class 150 LB Y-type strainer is manufactured to meet ASME B16.34 standards, featuring a durable ASTM A351 CF8 body for enhanced corrosion resistance. Its Y-shaped design, combined with a bolted body cover connection, ensures reliable performance and easy maintenance. The strainer is equipped with raised face (RF) connections, facilitating secure and leak-free installation in various pipeline applications. This strainer is an ideal solution for effectively filtering debris and ensuring optimal flow in industrial systems.

Request a quote

Quick Detail

Type	Y Type Strainer
Size	4 Inch, DN100
Pressure	Class 150 LB, PN16
Connection	RF
Body Material	ASTM A351 CF8
Design Norm	ASME B16.34

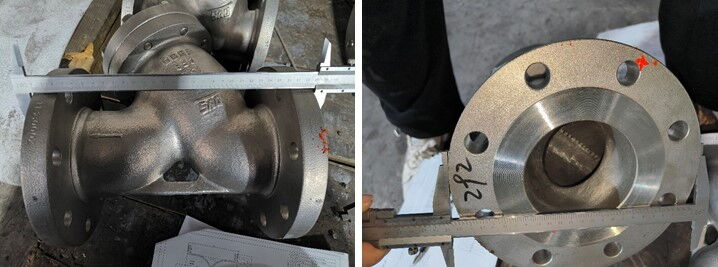

Face to Face Dimension	ASME B16.10
Flange Dimension	ASME B16.5

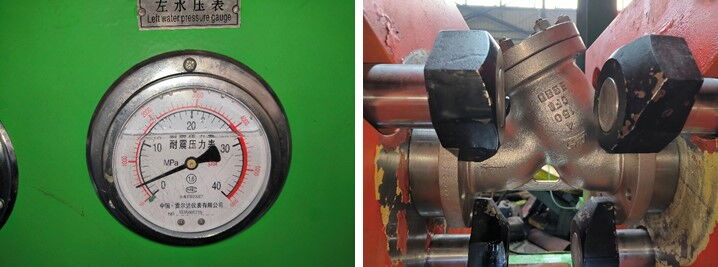

Test & Inspection Code	API 598
Temperature	-29 to 425°C
Applicable Medium	Water, Oil and Gas

Detail Information

On this page

ASME B16.34 Y Strainer, A351 CF8 Body, 4 Inch/DN100, 150 LB.

Features

1. Suitable for various media, including water, oil, gas, steam, etc., widely used in chemical, petroleum, pharmaceutical, food, environmental protection, and other fields. It can effectively extend the service life of other devices in the system.

2. Internally installed filters can effectively intercept solid particles and impurities in the pipeline, preventing them from entering other equipment in the system and avoiding damage or blockage.
