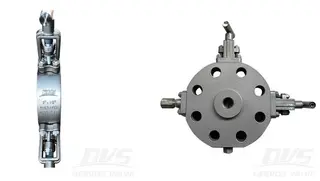

ASME B16.34 Slimline Monoflange, ASTM A105N, Class 300 LB
Model Number: Kelly-MF-20240927-06
Key Specifications / Features
The 2 x 1/2 Inch 300 LB slimline monoflange is manufactured under ASME B16.34 standards, featuring a robust ASTM A105N body. This valve incorporates a BLOCK-BLEED-BLOCK design and complies with NACE MR 0175 for sour service applications. The first and second isolation valves are equipped with a plug cover, open stem, needle valve, and handle operation for precise control. The exhaust valve features a plug cover and a tamper-proof needle valve design. Additionally, the drain valve includes a 1/4" NPT-F with a hexagonal threaded plug (NPT-M, ASME B1.20.1; MoC: F316L, CL.6000#). Its connection mode is RF*FNPT, and it operates via a handwheel for ease of use.
Detail Information
Slimline Monoflange, ASME B16.34, ASTM A105N, Class 300 LB.
2. The design is more compact, saving valuable installation space and system weight.
Features
1. Simplify maintenance, and reduce on-site operational steps and downtime.2. The design is more compact, saving valuable installation space and system weight.

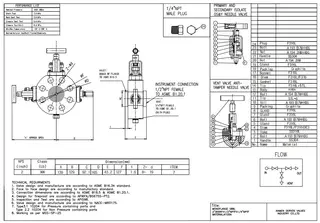

Technical Drawing
Dimension Checking

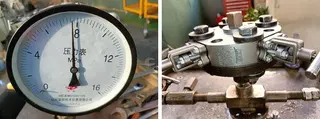

Pressure Testing

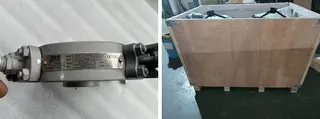

Nameplate & Packing

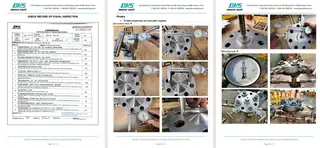

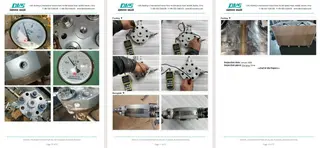

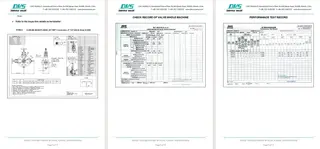

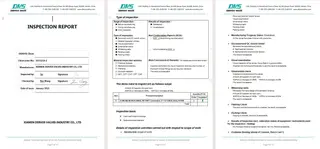

Inspection Report
