API 609 Concentric Butterfly Valve, GGG40, EN 12266, Lug
Key Specifications / Features
20 Inch 150 LB butterfly valve is made according to API 609 standard. The valve body is made of cast iron GGG40. It has the structural characteristics of medium line type and lug type (threaded hole). Its connection mode is lug. And it has turbine operation mode.
Detail Information
API 609 Cast Iron Butterfly Valve, lug type
Features
1. Light weight, easy maintenance, good sealing effect and long service life;
2. Widely used in various industrial fluid control.
Technical Drawing

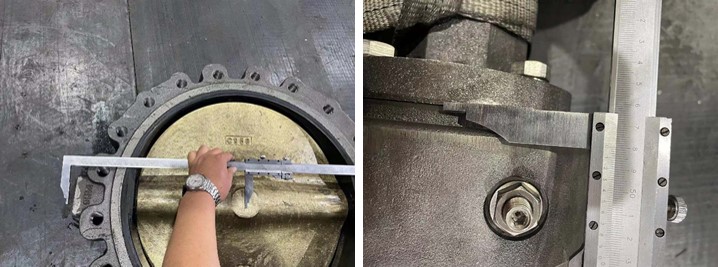

Dimension Checking

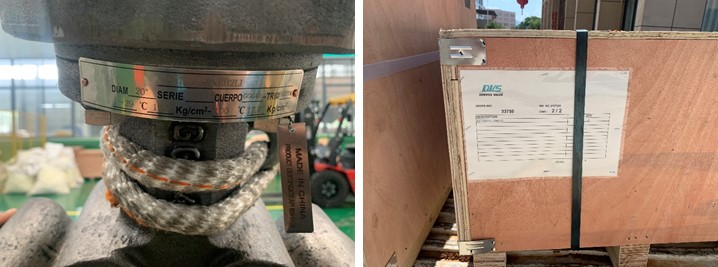

Nameplate & Packing
| Type | Butterfly Valve |
| Size | 20 Inch |
| Pressure | 150 LB |
| Connection | Lug |
| Operation | Turbine Operation |
| Body Material | GGG40 |
| Design Norm | API 609 |
| Face to Face | EN558-1 |
| End Flange | AWWA C207 CLASS E |
| Top Flange | ISO 5211 |
| Test & Inspection | Code EN12266 |
| Applicable Medium | Water, Oil and Gas |
Features
1. Light weight, easy maintenance, good sealing effect and long service life;
2. Widely used in various industrial fluid control.
Technical Drawing
Dimension Checking
Nameplate & Packing
