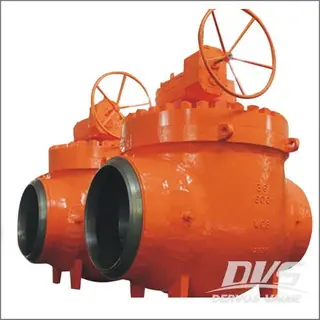

36 Inch Ball Valve, WCB, API 6D, Class 900, BW End, Gearbox
Model Number: TE BV 11
Key Specifications / Features
China 36 Inch Ball Valve Manufacturer Kelly Supplies 36 Inch Ball Valve, Material WCB, Standard API 6D, Class 900, Butt Welded End, Gearbox Operation.
Detail Information
Valve Description:
Design Standard: API 6D.
Body Material: WCB.
Nominal Diameter: 36".
Pressure: CL900.
End Connection: BW.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+200℃.
Mode of Operation: Gearbox.
Test and Inspection: API 598.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: 150lbs~2500lbs(PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃~+200℃.
Features: One Piece Type Body, Emergency Sealant Injection, Low Emission Packing, Fire Safe, Anti-static and Anti-Blowout Stem, Valve Seat Function DBB, Optional Extended Bonnet, Cavity Pressure Self-relief.
Design Standard: API 6D.
Body Material: WCB.
Nominal Diameter: 36".
Pressure: CL900.
End Connection: BW.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+200℃.
Mode of Operation: Gearbox.
Test and Inspection: API 598.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: 150lbs~2500lbs(PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃~+200℃.
Features: One Piece Type Body, Emergency Sealant Injection, Low Emission Packing, Fire Safe, Anti-static and Anti-Blowout Stem, Valve Seat Function DBB, Optional Extended Bonnet, Cavity Pressure Self-relief.
