3/4 Inch NPT Female Ball Valve, ASME B16.34, A105, 150 LB

Name: 3/4 Inch NPT Female Ball Valve, ASME B16.34, A105, 150 LB
SKU: Kelly-BV-20240906-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The 3/4 inch PN16 floating ball valve is crafted to comply with ASME B16.34 standards, featuring a robust ASTM A105 body. It incorporates a floating ball design with a full bore and offers anti-fire and anti-static properties. The valve includes F-NPT connections and operates via a lever mechanism, providing dependable performance and ease of use. As a leading ball valve manufacturer from China, we ensure our valves meet the highest standards of quality and reliability.

Request a quote

Quick Detail

Type	Floating Ball Valve
Size	3/4 Inch, DN20
Pressure	150 LB, PN16
Connection	Female NPT
Operation	Lever
Body Material	ASTM A105
Design Norm	ASME B16.34
End to End Dimension	Manufacturer's Standard
Screwed End	ASME B1.20.1
Test & Inspection Code	API 598
Fire Safe Test	API 607
Temperature	-29°C to 150°C
Applicable Medium	Water, Oil and Gas

Detail Information

On this page

Forged Steel Floating Ball Valve, ASME B16.34, ASTM A105 Body, Female NPT.

Features

1. The floating ball valve boasts a straightforward structure, making it easy to manufacture and maintain.

2. These valves are versatile and suitable for a range of media, including water, oil, gas, and acidic or alkaline liquids.

Technical Drawing

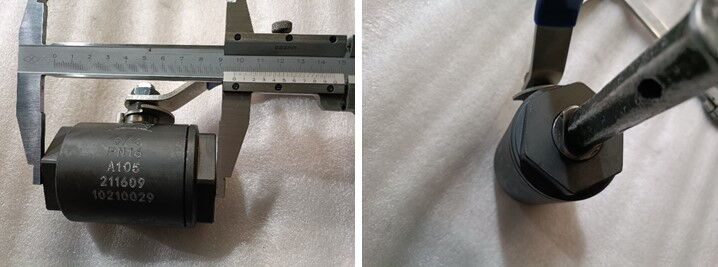

Dimension Checking

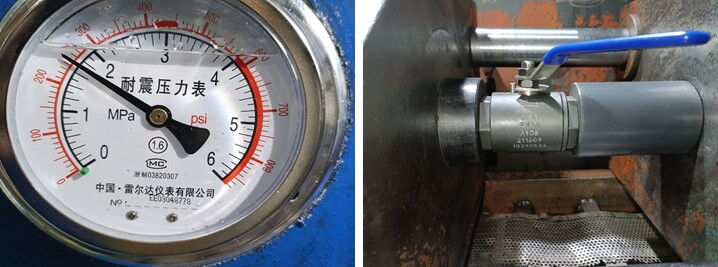

Pressure Testing

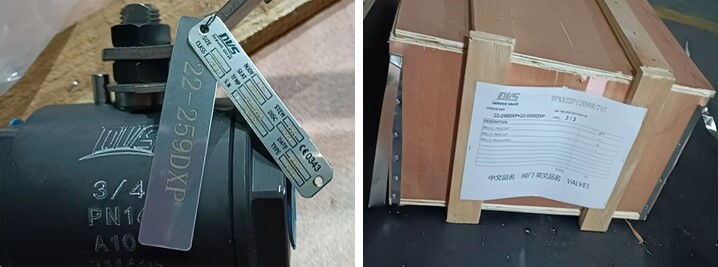

Nameplate & Packing

Inspection Report

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

Can you supply valves with 3.2 certification?

Yes, 3.2 certificates are available at an additional cost. We work with reputable third-party inspection agencies (TPI) such as BV, TUV, SGS, or LR, who will inspect the valves and issue signed certificates provided with the shipment.

Можете ли вы поставить клапаны с сертификатом 3.2?

Да, сертификат 3.2 доступен за дополнительную плату. Мы привлекаем авторитетные третьи инспекционные организации (TPI), такие как BV, TUV, SGS, LR, для инспекции клапанов. Сертификаты подписываются и выдаются этими организациями и предоставляются вместе с клапанами.

¿Pueden suministrar válvulas con certificación 3.2?

Sí, el certificado 3.2 está disponible con coste adicional. Contamos con organismos de inspección reconocidos como BV/TUV/SGS/LR para inspeccionar las válvulas. Los certificados serán firmados y emitidos por estos TPI y se entregarán junto con las válvulas.
