Steel Plate Shot Blasting Machine

Name: Steel Plate Shot Blasting Machine
SKU: JX- RCBM-03
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Buy Steel Plate Shot Blasting Machine from JX Abrasives Manufacturer in China, excellent performance, compact design, simple operation.

Request a quote

Detail Information

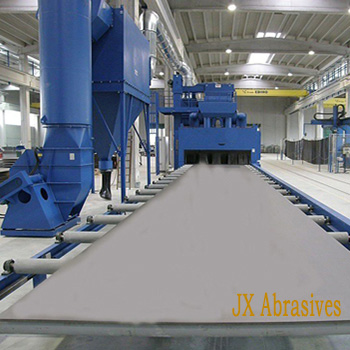

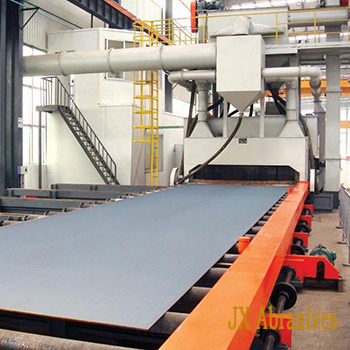

JX Steel plate shot blasting machine is an automatic blasting machine for steel plates, sheets and strips.
Automatic loading and unloading, automatic blasting, automatic dust collection, automatic abrasive media reclaim system.

Typical Application:
1. Structural Steel.
2. Mill Scale Removal.
3. Profiling.
4. Paint Preparation.

Machine Details:

These Type of Machines consist of under mentioned Parts:
1. Main Blast Cabinet with Inspection Door.
2. Blast Wheel Units with Drive Mechanism.
3. Abrasive Circulation Unit.
4. Bucket Elevator Unit.
5. Abrasive Separation/Cleaning System with Storage Hopper.
6. Dust Collector with Cleaning Mechanism.
7. Roller Conveyor System at Inlet & Outlet Side.
8. Control Panel with PLC Control System.

Technology Parameter(Customized is available):

Steel Plate Shot Blasting Machine
Item Type	DX698	DX6912	DX6915	DX6920	DX6925	DX6930	DX6940
Width of work piece(mm)	≤800	≤1200	≤1500	≤2000	≤2500	≤3000	≤5000
Height of work piece (mm)	≤300	≤400	≤500	≤600	≤600	≤650	≤650
Cleaning rate (m/min)	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4
Shot blasting rate(kg/min)	4*125	4*125	4*200	6*250	6*250	6*250	8*25

This machine is not a standard machine, any parameters can be customized according clients’ requirements, so any further information please contact with us, our skilled engineer team will give you the most professional and cost-effective solutions.

JX Abrasives Standard Direct Drive Blast Wheel With High Performance

JX Shot Blasting Machine offers upgraded transport technology, high-efficient blast wheels and multiple machine sizes and types adhere to the customer’s shot-blasting needs. If you have special requirements, please download Blasting Equipments Questionnaire for your reference.
