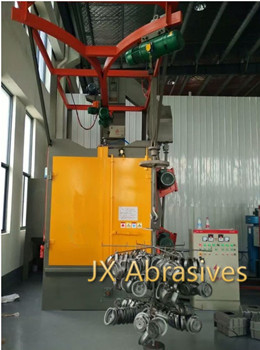

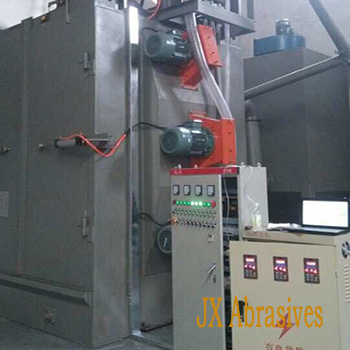

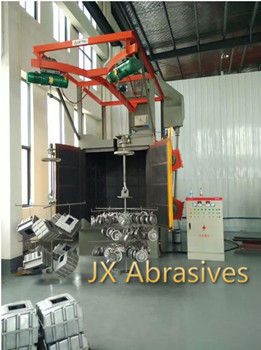

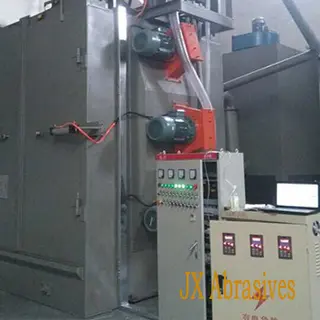

Hanger Shot Blast Machine

Name: Hanger Shot Blast Machine
SKU: JX-HBM-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Buy Hanger Shot Blasting Machine from JX Abrasives Manufacturer in China, energy saving, efficiently remove of burrs and scales, increase surface roughness.

Request a quote

Detail Information

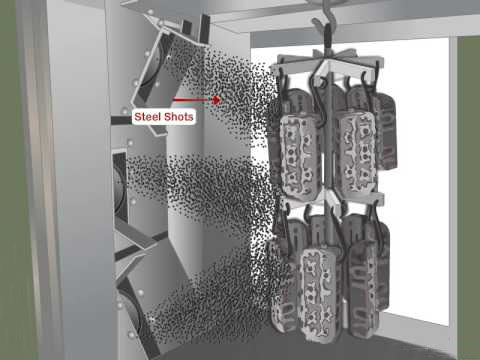

Hanger shot blasting machine is mainly used for casting. structural, non-ferrous alloy parts and other parts of the surface cleaning, shot blasting cleaning machine of this series at a single hook, double hook-type, lifting and not. Lifting style and many other models. It has the advantages of no pit, compact structure, and high productivity.

Typical Applications:
1. Removal of mill and forge scale as well as rust.
2. Removal of burrs and scales.
3. Removal of moulding sand.
4. Increase of surface roughness.
5. Shot peening to increase fatigue strength.

Machine Details:

This machine is not a standard machine, any parameters can be customized according clients’ requirements, so any further information please contact with us, our skilled engineer team will give you the most professional and cost-effective solutions.

Technology Parameter(Customized is available):

Hanger Shot Blasting Machine
Item	Unit	DX376	DX378B	DX378C	DX3710	DX3720	DX3730	DX3750	DX37100
Max. weight of cleaning	kg	500	600	800	1000	2000	3000	5000	10000
Abrasive flow rate	kg/min	2*200	2*200	2*250	2*250	3*250	3*250	4*250	4*250
Ventilation capacity	m3/h	5000	5000	5000	5000	9000	11000	14000	16000
Lifting amount of elevating conveyor	t/h	24	24	30	30	45	45	60	75
Separating amount of separator	t/h	24	24	30	30	45	45	60	75
Max overall dimensions of suspender	mm	Ø600*1200	Ø700*1200	Ø1000*1600	Ø1200*1800	Ø1400*2200	Ø1600*2300	Ø1800*2500	Ø3000*3000

These Type of Machines Consist of Under Mentioned Parts:

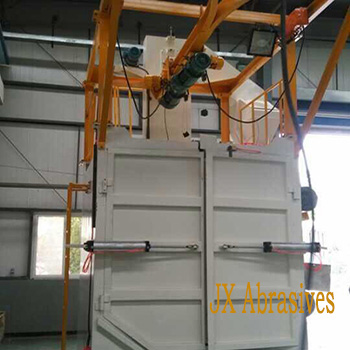

1. Main Blast Cabinet with inspection Door.
2. Blast Wheel Units with Drive Mechanism.
3. Abrasive circulation unit.
4. Bucket Elevator unit.
5. Abrasive Separation/Cleaning system with Storage Hopper.
6. Dust Collector with Cleaning Mechanism.
7. Roller Conveyor system at Inlet & Outlet Side.
8. Control Panel with PLC Control System.

JX Abrasives Standard Direct Drive Blast Wheel With High Performance

JX Shot Blasting Machine offers upgraded transport technology, high-efficient blast wheels and multiple machine sizes and types adhere to the customer’s shot-blasting needs. If you have special requirements, please download Blasting Equipments Questionnaire for your reference.
