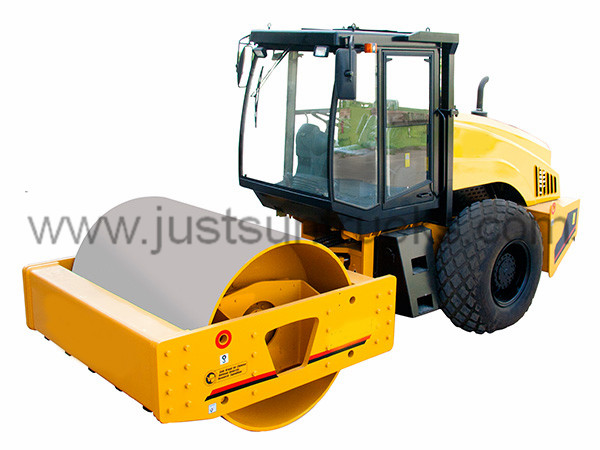

Road Roller, Single Drum Roller, 14 - 18 Ton, Width 2130 mm, 110 kW
Model Number: JS-CE-05
Key Specifications / Features
Justsun Single Drum Roller, Single Drum Compactor, Single Drum Vibratory Roller Has Operating Weights of 14 Ton (30864 lbs), 16 Ton (35273 lbs) and 18 Ton (39683 lbs), Compaction Width 2130 mm, Power 110 kW. Single Drum Road Roller with the Cutting-edge Compaction Technology, Excellent Control and Visibility.
Contact Supplier
Detail Information
Features of Justsun's road rollers
- The Yuchai YC6B150Z-T21 diesel engine with 6 cylinders is adopted for the road roller, which makes the road roller have stable and reliable performance.
- The Stirling engine hood can be opened fully, which makes the engine easily repaired and maintained.
- The road roller is equipped with famous international special vibratory bearing brands such as SKF, FAG and TIMKEN.
- Most of the mass distributes on the front drum, and it is over 50% of the total weight, producing large exciting force, high amplitude and proper compacting performance.
- The cab is comfortable and has large space, low noise, shock absorption, thermal insulation and very good view.
- The air conditioner can be chosen based on the customer's requirement.
Specification of Justsun's road rollers
| Description | Unit | 6141M-I | 6161M-I | 6181M-I | |
| Operating Weight | kg | 14000 | 16000 | 18000 | |
| Static Linear Load of Drum | N/cm | 322 | 368 | 414 | |
| Theoretical Amplitude(H/L) | mm | 1.7/0.82 | 1.8/1.0 | 2.0/1.0 | |
| Centrifugal Force (H/L) | KN | 275/135 | 290/170 | 320/160 | |
| Vibration Frequency | Hz | 30 | |||
| Compaction Width | mm | 2130 | |||
| Min. Turning Radius | mm | 6500 | |||
| Max. Gradeability | % | 25 | |||
| Vibration Wheel Diameter | mm | 1550 | |||
| Vibration Wheel Width | mm | 2130 | |||
| Travel Speed | I | km/h | 2.1(F/R) | ||
| II | km/h | 4.1(F/R) | |||
| III | km/h | 8.8(F) | |||
| Engine | Brand | Yuchai | |||
| Model | YC6B150Z-T21 | ||||
| Rated power | kW | 110 | |||
| Rated speed | rpm | 2100 | |||
| Overall Dimension(L×W×H) | mm | 6105×2332×3195 | |||
