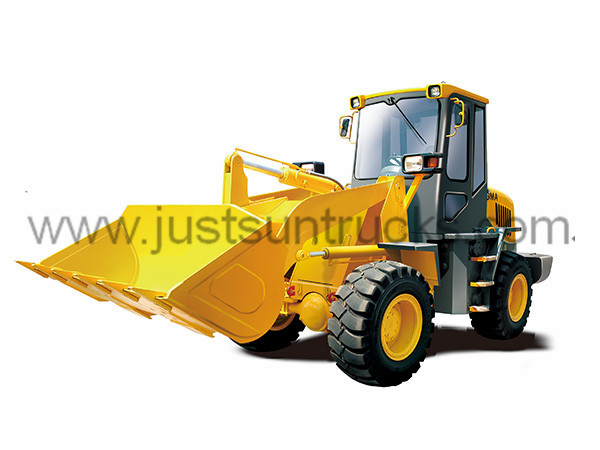

Medium Wheel Loader, 58 kw, 6.11 Ton, Bucket 0.75 - 1.5 m3
Model Number: JS-CE-06
Key Specifications / Features
Medium Wheel Loader, Payloader, Medium Wheel Loader in Power 58 kW, 6.11 Ton (12220 LBs), Bucket Capacity 0.75-1.5 m3 (0.9-1.9 yd3) Is Equipped with Low Emission Engines and Changeable Spare Parts. Payloader Tractor, Front End Loader, Medium Wheel Loader Tractor Operates with Power to Help You Move More Material.
Detail Information
Product: Medium Wheel Loader.
Power: 58 kw.
Operating weight: 6.11 Ton.
Bucket: 0.75 - 1.5 m3.
Features of Justsun's Medium Wheel Loader
Power: 58 kw.
Operating weight: 6.11 Ton.
Bucket: 0.75 - 1.5 m3.
Features of Justsun's Medium Wheel Loader
- The long wheelbase and reasonable load distribution of the axle make the loader have good stability when it is in operation.
- The high dumping, great digging force and auto leveling during material dumping make the loader have high working efficiency.
- The separate layout of transmission components, the free link function of the fuel, hydraulic oil tank and backward opening of the engine hood make the loader easily repaired.
- The cab has professional designs of shock absorption and noise isolation. And the loader can meet different requirements of sites.
- The special bucket and air conditioner can be selected for the loader according to different needs of customers.
- The loader manufactured by Justin's is the best choice for the customer who pursues high efficiency and high reliability.
Specification of Justsun's loaders
| Description | Unit | 918H | ||
| Engine | Brand | YTO | ||
| Model | LR4A3-24 | |||
| Type | Four-stroke cycle, water-cooling, in line arrangement, direct-injection | |||
| Rated power | kW | 58 | ||
| Rated speed | rpm | 2400 | ||
| Max. torque | N.m | 275 | ||
| Fuel consumption per hour | g/kW.h | ≤220 | ||
| Performance | Rated load | kg | 1800 | |
| Bucket capacity | m3 | 0.75-1.5 | ||
| Operating weight | t | 6.11 | ||
| Max. gradeability | ° | 30 | ||
| Discharge angle at full lift | ° | 45 | ||
| Dump clearance at full lift | mm | 2630 | ||
| Dumping reach | mm | 850 | ||
| Discharge angle | ° | ≥45 | ||
| Max. breakout force | KN | 6.11 | ||
| Lifting time of lift arm | s | 5 | ||
| Total cycle time | s | ≤9.5 | ||
| Min. turning radius (in carry position) | mm | 5000 | ||
| Overall dimensions(L×W×H) | mm | 5630×2000×2850 | ||
| Travel Speed | Forward | I | km/h | 0-8 |
| II | km/h | 0-20 | ||
| Reverse | I | km/h | 0-8 | |
| II | km/h | 0-20 | ||
