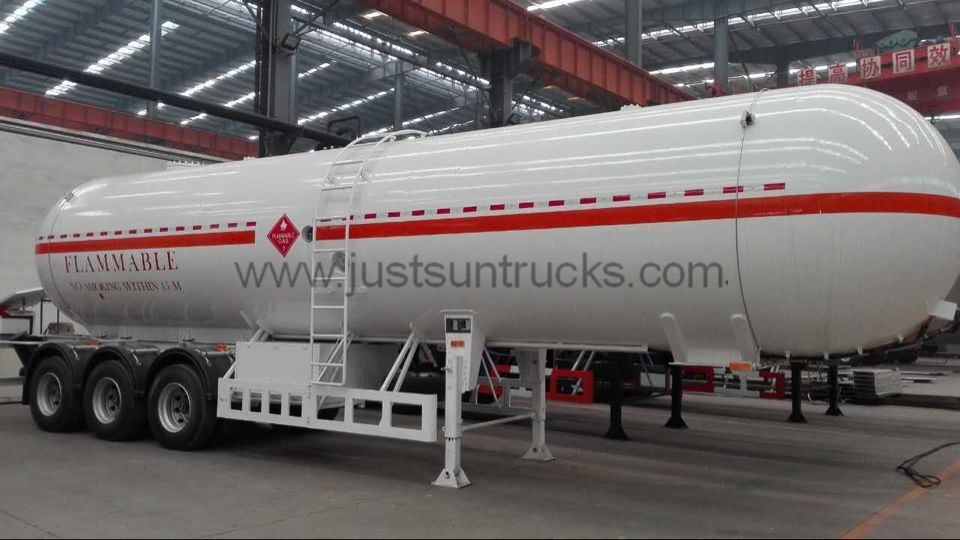

LPG Tanker Trailer, 58.1 m3, Tri Axle, 41915kg
Model Number: JS-ST-05
Key Specifications / Features
Justsun LPG Tanker Trailers with Q370R Steel Tank Capacity of 58.1 m3 (15348 US Gallon) Are Designed to Meet Your Needs for Transport LPG Gas. 41915kg (41 Ton) LPG Tri Axle Tanker Trailer, Liquefied Petroleum Gas Tank Trailer Can Hold 26915kg (Approx. 26 Ton) Ideal for Safe Road Transportation. Contact Now for Your LPG Trailer.
Contact Supplier
Detail Information
LPG Tanker Trailer
SPECIFICATION
SPECIFICATION
| Tri-Axle LPG Tank Semi-Trailers | |
| Feature | Carrying liquefied petroleum gas (LPG) |
| Dimension(L*W*H) | 13150*2500*4100mm |
| Model | SS9470GYQ |
| Material | Q370R |
| Compartment | One |
| Capacity(kgs) | 26,915KGS (58.1CBM, 0.42T/CBM) |
| Curb weight(kgs) | 15,000kgs |
| Kingpin | The world-famous JOST brand bolt-in/welded type 3.5"/2” |
| Landing gear | JOST brand two-speed manual operation 19” |
| Tire size | 11.00R20, 11R22.5, 12R22.5, 315/80R22.5 and 385/65R22.5 |
| Rim size | 8.25*22.5, 9.00*22.5 and 11.75*22.5 |
| Axle | Original BPW-12T/FUWA-13T |
| Leaf spring | Germany type with 12pcs of leafs spring/Fuwa brand with 10 pcs of leafs spring/Airbag suspension |
| Brake system | One unit of WABCO RE 4 relay valve, four units of T30/30 spring brake chamber, two units of T30 spring brake chamber, two units of reliable local brand 45L air tanks and two units of reliable local brand standard coppery air-connectors. |

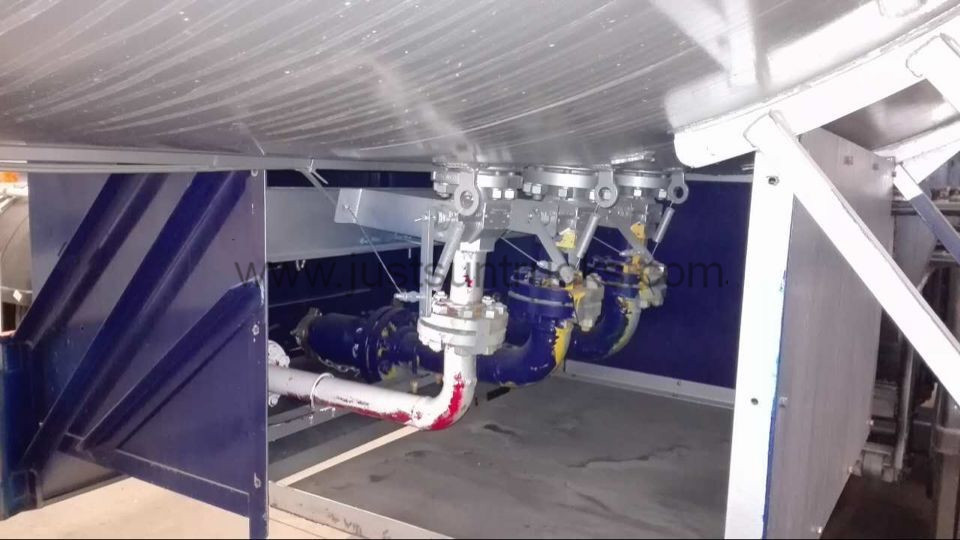

| Emergency valve (liquid phase) |
Rego Brand, A3213R300, 2 Pcs |
| Emergency valve (gas Phase) |
Rego Brand, A3212R175, 1 Pc |
| PRV | Rego Brand, A 8436G, 2 Pcs |
| Vent valve | Rego Brand, TSS3169, 4 Pcs |
| Liquid adaptor | Rego Brand, 5769K (3", 3-1/4ACME), 2 Pcs |
| Gas adaptor | Rego Brand, 5767H (2", 2-1/4ACME), 1 Pc |
| Angle valve | Rego Brand, J415/ A2805C, 1 Pc |
| Pressure gauge | Rego Brand, J542 /A 8400, 1 Pc |
| Thermometer | Rego Brand, J700, 1 Pc |
| Liquid level gauge | Rego Brand, 6339M11/6342M11, 1 Pc |
| Prime & top coat painting | S.A.2.5 standard sandblasting, zinc-rich & Polyurethane painting |
| We can manufacture the trailers according to customers' designs and requirements. | |
