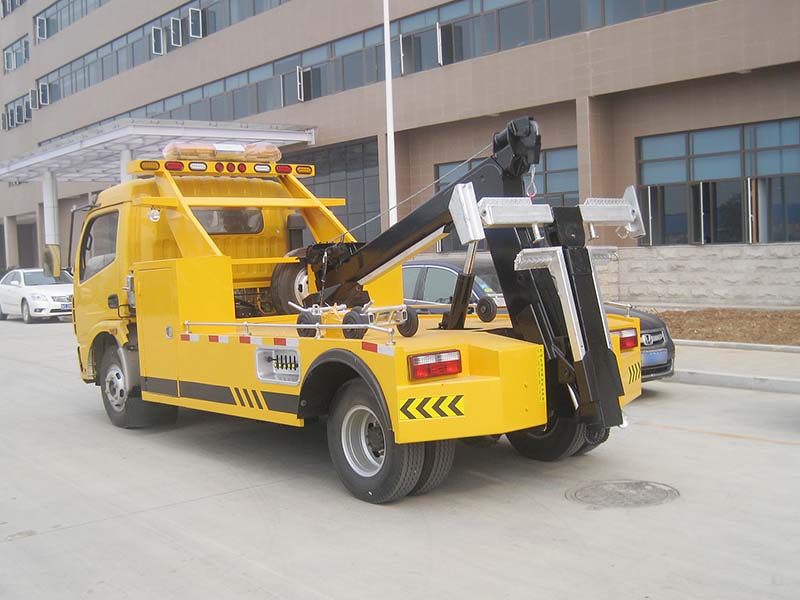

Integrated Tow Truck, Wrecker Truck, GVWR 7.3 Ton, Winch 40 kN
Model Number: JS-SV-10
Key Specifications / Features
Integrated Tow Truck aka Wrecker Truck Equipped with 2 Axles Has GVWR 7.3 Ton, Boom Capacity 3 Ton (6613 LB), Winch 40 kN, QL10703HARY Chassis, from China for Heavy-Duty Towing. Added Stability, the Most Affordable Prices, Fast Delivery. Justsun Offers a Full Series of Tow Trucks.
Detail Information
Product: Integrated Tow Truck.
GVWR (Gross Vehicle Weight Rating): 7.3 Ton (14,600 LB).
Boom Capacity: 3 Ton (6,613 LB).
Winch: 40 kN.
Axle: 2.
Chassis: QL10703HARY.
SPECIFICATIONS
Chassis configuration
Qingling QL10703HARY, Isuzu 100 horsepower engine (4JB1CN), wheelbase 3,360mm, with air conditioning, driven turn, oil brake, front axle 2 - 2.5 tons, rear axle 4 - 4.8 tons, Isuzu fifth gear box, 7.00R16 steel wire tire.
Configuration of parts except the chassis
3T3D1 dragging and hanging part, two booms, integral bodies, vertical toolboxes on both sides, adopting domestic well-known brands of hydraulic cylinders, imported oil cylinder seal rings, imported Italian multiple unit valves and balance valves, well-known brands of hydraulic oil pipe with imported oil pipe joints, stable, reliable and easy operated bilateral linkage operation device, 3 rear work lights, one hydraulic winch with 40KN (25m steel wire ropes), 1 washbasin, one pair of L-shaped tire holders, 2 bundled straps, one pair of set forks, one pair of set fork holders, one chain hooks and one long row of warning lights (LED).
GVWR (Gross Vehicle Weight Rating): 7.3 Ton (14,600 LB).
Boom Capacity: 3 Ton (6,613 LB).
Winch: 40 kN.
Axle: 2.
Chassis: QL10703HARY.
SPECIFICATIONS
| Main technical parameters | |||
| Product | JSIE 5073TQZW Integrated tow truck |
Dimension (L*W*H) | 5355×2000×2300mm |
| Total weight | 7300 kg | ||
| Curb weight | 3770 kg | ||
| The number of passengers in the cab | 2 | ||
| Approach/departure angle | 24°/15° | Front suspension/rear suspension | 1015/980mm |
| Axles | 2 | Wheel base | 3360 mm |
| Axle load | 2580/4720 kg | Maximum speed | 95 (Km/h) |
| Other information | The Lifting mass is 3,400 kg and the cab is selected based on the chassis.The material of the two sides is Q235. The back is a lifting device, and the lower edge is 380m from the ground. | ||
| Chassis technical parameter | |||
| Chassis model | QL10703HARY | Chassis | Truck Chassis (Class 2) |
| Dimension (L*W*H) | 5900×1880×2220 mm | Tires (pc) | 6 |
| Approach/departure angle | 24°/16° | Tyre type | 7.00-16 14PR and 7.00R16 14PR |
| Steel plate leaf spring | 8/6+5 | Front track distance | 1,504mm |
| Fuel type | Diesel | Rear track distance | 1,425mm |
| Emission standard | GB17691-2005 (National Ⅳ) and GB3847-2005N National 5 | ||
| Engine model | 4JB1CN | Displacement | 2771 ml |
| Rated power | 72 Kw | ||
Chassis configuration
Qingling QL10703HARY, Isuzu 100 horsepower engine (4JB1CN), wheelbase 3,360mm, with air conditioning, driven turn, oil brake, front axle 2 - 2.5 tons, rear axle 4 - 4.8 tons, Isuzu fifth gear box, 7.00R16 steel wire tire.
Configuration of parts except the chassis
3T3D1 dragging and hanging part, two booms, integral bodies, vertical toolboxes on both sides, adopting domestic well-known brands of hydraulic cylinders, imported oil cylinder seal rings, imported Italian multiple unit valves and balance valves, well-known brands of hydraulic oil pipe with imported oil pipe joints, stable, reliable and easy operated bilateral linkage operation device, 3 rear work lights, one hydraulic winch with 40KN (25m steel wire ropes), 1 washbasin, one pair of L-shaped tire holders, 2 bundled straps, one pair of set forks, one pair of set fork holders, one chain hooks and one long row of warning lights (LED).
| Maximum towing capcaity | 6495 kg | |
| Underlift | Maximum lifting weight | 1800 kg |
| Outreach maximum lifting mass (kg) | 1680 kg | |
| Support boom length | 920-1520 kg | |
| Support boom extension stroke | 600 kg | |
| Lift arm angle | 11.6° | |
| Lift arm downtilt | -4.5° | |
| No load folding angle | 90° | |
| Full extension of the maximum distance from the upper surface of the cross arm to the ground | ≮ 800mm | |
| Recovery Boom | Rating | 3000 kg |
| Cylinder extension stroke | 1540mm | |
| Boom length | 3900mm | |
| Maximum lifting height | 2700mm | |
| Lift angle | 3.3° - 19.3° | |
| Winch | Quantity | 1 piece |
| Pulling force | 40 kN | |
| Cable diameter | φ11mm | |
| Cable length | 25m | |
| Cable minimum linear speed | 5 m/min | |
