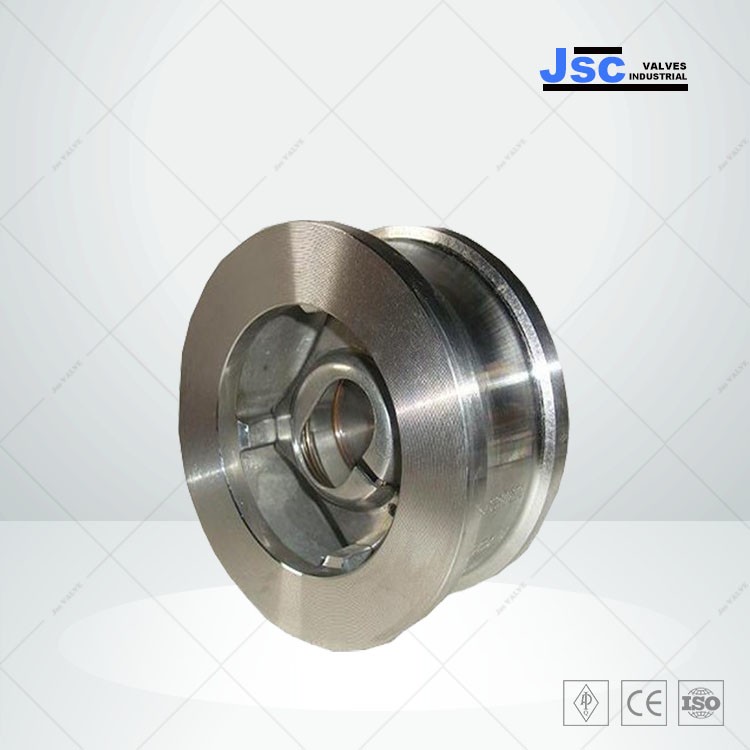

Single Disc Wafer Check Valve, API 594, 2-48 IN, 150-1500 LB
Model Number: JSC-231124-WCV-86
Key Specifications / Features
As a reputable fabricator in China, we specialize in manufacturing single disc wafer check valves in compliance with API 594 and API 6D standards. Our comprehensive range covers sizes from 2 to 48 inches, catering to Class 150-1500 LB specifications. Crafted from cast ductile iron, carbon, alloy, and stainless steel, our single disc wafer check valves are designed to provide reliable performance across various applications.
Detail Information
Single Disc Wafer Check Valve
Single disc check valves are automatic valves that open with forward flow and close against reverse flow. The main function of a check valve is to protect mechanical equipment in a piping system by preventing fluid reversal.
Single disc check valve can be divided into the short type and long type.
Single Disc Wafer Check Valve-Features
1.Light weight, versatile design—80% to 90% less than conventional 2.Full-body swing check valves
3.Single Disc opening
4.Single integrated arm/disc assembly
5.Spring-loaded disc calculated to increase the responsiveness of the disc
Integrated body seat
6.Soft seated valves come in two variants O ring seated and PTFE / RPTFE seated
Single Disc Wafer Check Valve-Standard and Specifications
Design standard: API 594 and API 6D (as applicable)
Face to face standard: API 6D, ANSI B16.10
End connection: Wafer type, Sandwich pattern, flangeless, mount between two flanges ASME B16.1, B16.5, B16.34, B16.42, B16.47 and B31.1
Inspection and testing standard: API 598
Pressure rating: ASME 16.34
Manufacturing size range: 2 Inch - 48 Inch
Pressure range: Class 150 - 1500 LB
(Standard for the resilient seated, metal seated when required)
Body & Disc Material: ASTM A126 GR. B (Cast Iron), Ductile Iron, ASTM A216 GR. WCB (Cast Carbon Steel), ASTM A351 GR. CF8/CF8M (SS 304/SS 316), ASTM A351 GR. CF3/CF3M (SS 304L/SS 316L), ASTM A351 GR. CN7M, ASTM A351 Gr. CF8C, ASTM A351 Gr. CD4Mcu/ASTM A351 Gr. CK3MCuN, ASTM A352 Gr. LCA/LCB/LCC, ASTM A217 Gr. WC1/WC6/WC9/C5/C12, ASTM A494 Gr. CW6MC/CW2M /CY40 /CU5MCuC
NACE MR0175/NACE MR
Single disc check valves are automatic valves that open with forward flow and close against reverse flow. The main function of a check valve is to protect mechanical equipment in a piping system by preventing fluid reversal.
Single disc check valve can be divided into the short type and long type.
Single Disc Wafer Check Valve-Features
1.Light weight, versatile design—80% to 90% less than conventional 2.Full-body swing check valves
3.Single Disc opening
4.Single integrated arm/disc assembly
5.Spring-loaded disc calculated to increase the responsiveness of the disc
Integrated body seat
6.Soft seated valves come in two variants O ring seated and PTFE / RPTFE seated
Single Disc Wafer Check Valve-Standard and Specifications
Design standard: API 594 and API 6D (as applicable)
Face to face standard: API 6D, ANSI B16.10
End connection: Wafer type, Sandwich pattern, flangeless, mount between two flanges ASME B16.1, B16.5, B16.34, B16.42, B16.47 and B31.1
Inspection and testing standard: API 598
Pressure rating: ASME 16.34
Manufacturing size range: 2 Inch - 48 Inch
Pressure range: Class 150 - 1500 LB
(Standard for the resilient seated, metal seated when required)
Body & Disc Material: ASTM A126 GR. B (Cast Iron), Ductile Iron, ASTM A216 GR. WCB (Cast Carbon Steel), ASTM A351 GR. CF8/CF8M (SS 304/SS 316), ASTM A351 GR. CF3/CF3M (SS 304L/SS 316L), ASTM A351 GR. CN7M, ASTM A351 Gr. CF8C, ASTM A351 Gr. CD4Mcu/ASTM A351 Gr. CK3MCuN, ASTM A352 Gr. LCA/LCB/LCC, ASTM A217 Gr. WC1/WC6/WC9/C5/C12, ASTM A494 Gr. CW6MC/CW2M /CY40 /CU5MCuC
NACE MR0175/NACE MR
