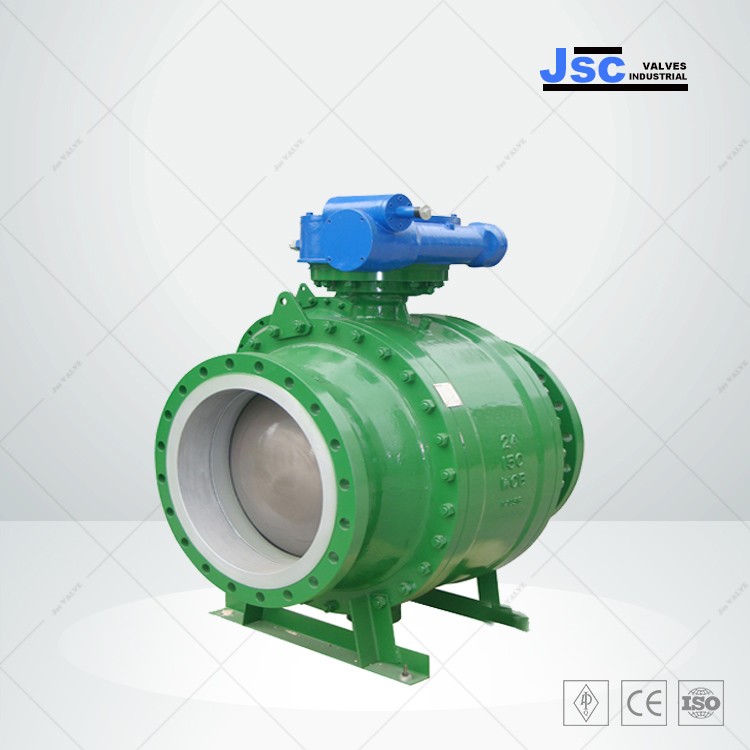

2 Piece Trunnion Ball Valve, API 6D, A216 WCB, 10 IN, 300 LB
Model Number: JSC-240418-TMBV-01
Key Specifications / Features
Explore our 2-piece trunnion ball valve, meticulously crafted from durable carbon steel ASTM A216 WCB, compliant with API 6D standards. With a size of 10 inches (DN250) and a pressure rating of Class 300 LB (PN50), it ensures reliable performance in high-pressure environments. Featuring RPTFE seats, bolted bonnet, and side entry design, it guarantees efficient and secure fluid control for your industrial applications.
Detail Information
2PC Cast Steel Trunnion Ball Valve
Valve description: Ball valve, trunnion type, soft seat, bolted bonnet, two pieces, cast carbon steel, side entry, anti-static, fire safe deign, full bore, Emergency seat and stem injection, Self-relief of excessive cavity pressure.
Body material: ASTM A216 WCB
Nominal diameter: 10 Inch (DN250)
Nominal class: Class 300 LB (PN50)
End connection: RF
Metal seat: RPTFE
Face to face: ASME B16.10
Mode of operation: Gear
Test and inspection: API 598
Standard: API 6D
Cast Steel Trunnion Ball Valves are available in either a 2-piece or 3-piece body design, depending on the valve size. Generally, valves smaller than 20 inches feature a 2-piece body, while those larger than 20 inches are constructed with a 3-piece body.
We offer the following valve options:
Two-Piece Trunnion Ball Valve, Side Entry
Three-Piece Trunnion Ball Valve, Split Body
SIZE RANGE AND PRESSURE CLASS
Size Range: 2 Inch – 48 Inch (DN50-DN1200)
Pressure Range: Class 150 LB – 2500 LB (PN10-PN420)
DESIGN STANDARDS
Design / Manufacture: API 6D, ASME B16.34, DIN 3357, EN 13709, GB/T 12237, BS 5351, JIS B 2071
Face to Face Length (Dimension): MFG, API 6D, ASME B16.10, EN 558-1, DIN 3202, JIS B 2002
Flanged Dimension: ASME B16.5, EN 1092-1, BS 4504, DIN 2501
Flanged to ASME B16.5 (2 Inch-24 Inch) and ASME B16.47 Series A / B (26 Inch and above) Clamp / Hub ends on request.
Butt Welding Ends: ASME B16.25, EN 12982, GB/T 12224
Testing: API 598, API 6D, EN 12266-1, EN 1074-1, ISO 5208, DIN 2401, JIS B 2003.
Valve description: Ball valve, trunnion type, soft seat, bolted bonnet, two pieces, cast carbon steel, side entry, anti-static, fire safe deign, full bore, Emergency seat and stem injection, Self-relief of excessive cavity pressure.
Body material: ASTM A216 WCB
Nominal diameter: 10 Inch (DN250)
Nominal class: Class 300 LB (PN50)
End connection: RF
Metal seat: RPTFE
Face to face: ASME B16.10
Mode of operation: Gear
Test and inspection: API 598
Standard: API 6D
Cast Steel Trunnion Ball Valves are available in either a 2-piece or 3-piece body design, depending on the valve size. Generally, valves smaller than 20 inches feature a 2-piece body, while those larger than 20 inches are constructed with a 3-piece body.
We offer the following valve options:
Two-Piece Trunnion Ball Valve, Side Entry
Three-Piece Trunnion Ball Valve, Split Body
SIZE RANGE AND PRESSURE CLASS
Size Range: 2 Inch – 48 Inch (DN50-DN1200)
Pressure Range: Class 150 LB – 2500 LB (PN10-PN420)
DESIGN STANDARDS
Design / Manufacture: API 6D, ASME B16.34, DIN 3357, EN 13709, GB/T 12237, BS 5351, JIS B 2071
Face to Face Length (Dimension): MFG, API 6D, ASME B16.10, EN 558-1, DIN 3202, JIS B 2002
Flanged Dimension: ASME B16.5, EN 1092-1, BS 4504, DIN 2501
Flanged to ASME B16.5 (2 Inch-24 Inch) and ASME B16.47 Series A / B (26 Inch and above) Clamp / Hub ends on request.
Butt Welding Ends: ASME B16.25, EN 12982, GB/T 12224
Testing: API 598, API 6D, EN 12266-1, EN 1074-1, ISO 5208, DIN 2401, JIS B 2003.
