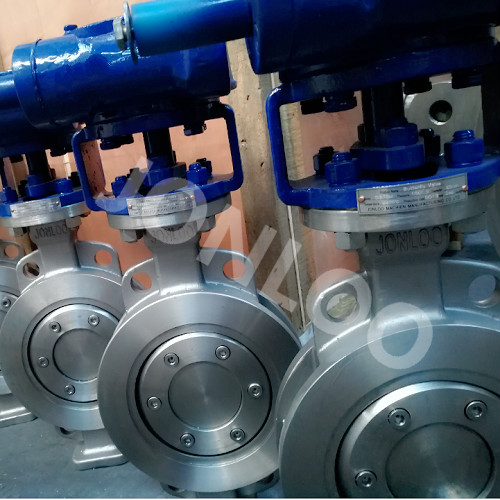

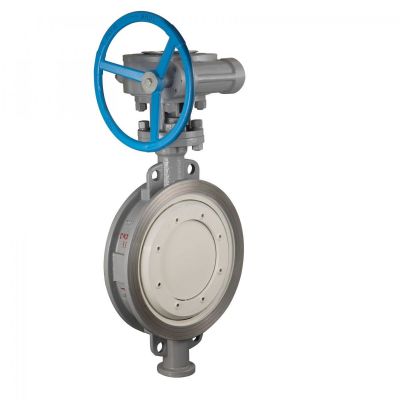

Stainless Butterfly Valve Wafer Type Triple Eccentric DIN Standard
Model Number: D373H
Key Specifications / Features
Leading Butterfly Valve Manufacturer JONLOO supplies Stainless Butterfly Valve in triple eccentric design according to DIN Standard.
Detail Information
Details
Size: 12inch
Wafer Type
DIN Standard
Pressure Rating:PN16
Triple Eccentric Design
Body Material: A 351 CF3M
Disc Material: A 351 CF3M
Seat: SS316L
Size: 12inch
Wafer Type
DIN Standard
Pressure Rating:PN16
Triple Eccentric Design
Body Material: A 351 CF3M
Disc Material: A 351 CF3M
Seat: SS316L
Standards
1.Design and manufacture:API 609, DIN3354
2.Inspection and test: API 598,DIN3230,BS5146
3.Face-to-Face:API609, DIN3202 K2
4.Flanged Ends: ASME B16.5 (for NPS API605, ASME B16.47 series A, MSS SP-44 (for NPS>24″), or BSEN 1092
5.Top flange: ISO5211
Features
The triple eccentric design minimize the abrasion on valve seat.
Adjustable mechnical stopper on valve body make it available to close the disc tightly.
The shaft is fully blowout proof and guided by self lubricated bush bearing
