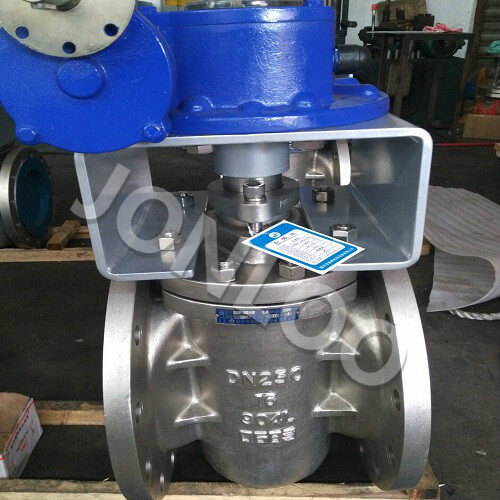

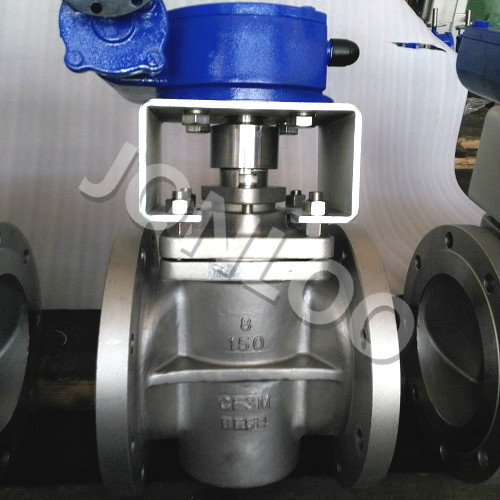

PTFE Sleeved Plug Valve CF8M 6 INCH 150 LB API 599
Model Number: X343F
Key Specifications / Features
China Leading Plug Valve Manufacturer JONLOO supplies PTFE Sleeved Plug Valve. It is a non-lubricated valve having a moulded, bonded or keyed sleeve of low friction polymer between the plug and the body that acts as the seat seal.
Contact Supplier
Detail Information
Details
Size:6 inch
Pressure:150LB
Body: A351 CF8M
Plug:Stainless Steel
Sleeve:PTFE
Features
Bolted cover,plug 90 degree around.
The sealing is realized by the face around the sleeve.
It has unique 360 degree metal edge for protection and fixing of the sleeve.
Size:6 inch
Pressure:150LB
Body: A351 CF8M
Plug:Stainless Steel
Sleeve:PTFE
Features
Bolted cover,plug 90 degree around.
The sealing is realized by the face around the sleeve.
It has unique 360 degree metal edge for protection and fixing of the sleeve.
Standards
Design and Manufacture: API 599, API 6D,ASME B16.34
Face to Face: ASME B16.10,EN 558-1
Flanged Ends: ASME B16.5,EN1092-1
Test and Inspection: API 598, API 6D,DIN3230
Pressure-Temperature Ratings:ASME B16.34
