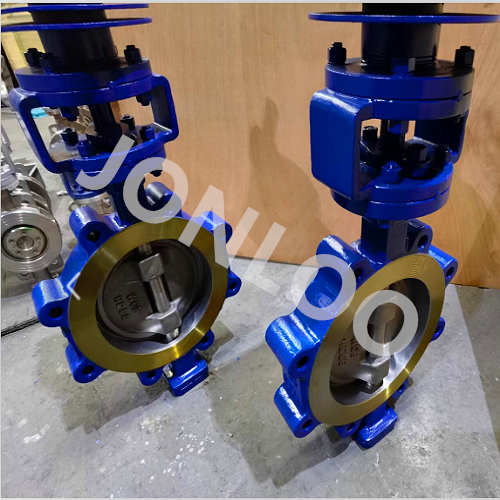

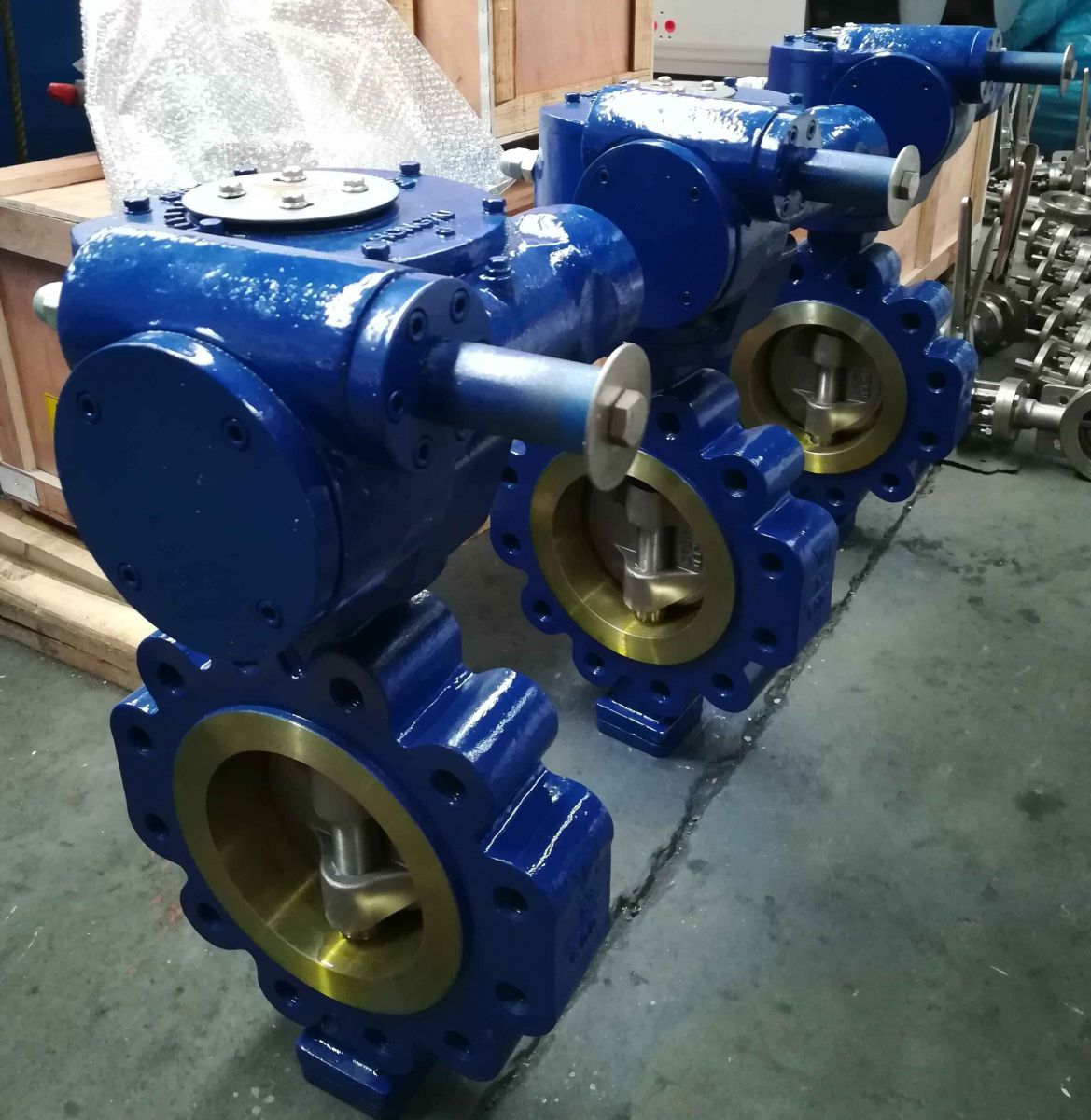

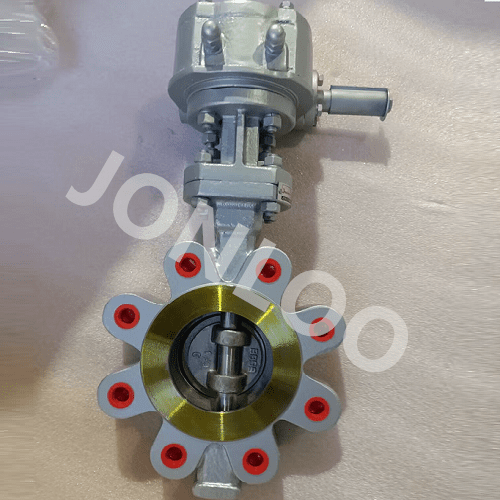

Lug Type Triple Offset Butterfly Valve 600LB 8 Inch WCB Body CF8M Disc
Model Number: LD373H
Key Specifications / Features
Leading Butterfly Valve Manufacturer JONLOO supplies Lug Type High pressure Butterfly Valve in class 600LB.
Detail Information
Details
Size:8inch
Pressure Rating: Class 600LB
Body: A216 WCB
Disc:CF8M
Stem: 17-4PH
Metal Seat
Standards
1.Design and manufacture:API 609, DIN3354
2.Inspection and test: API 598,DIN3230,BS5146
3.Face-to-Face:API609, DIN3202 K2
4.Flanged Ends: ASME B16.5 (for NPS API605, ASME B16.47 series A, MSS SP-44 (for NPS>24″), or BSEN 1092
5.Top flange: ISO5211
Features
The triple eccentric design minimize the abrasion on valve seat.
Adjustable mechnical stopper on valve body make it available to close the disc tightly.
The shaft is fully blowout proof and guided by self lubricated bush bearing
.jpg)
