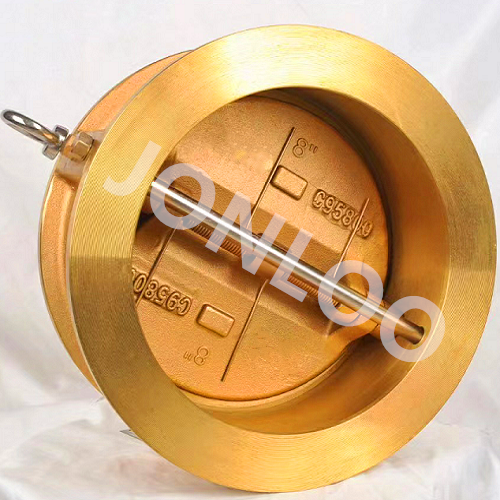

Dual Plate Check Valve Wafer Type C95400 18INCH 150LB
Key Specifications / Features
China Check Valve Factory JONLOO supplies C95400 material Dual Plate Check Valve, also called dual check valve. The valve is available in wafer type, lug type and flange type. Pls contact JONLOO if you need.
Detail Information
Details
Size: 18 Inch.
Pressure: 150 LB.
Body: C95400
Disc: C95400
Seat: C95400
Size: 18 Inch.
Pressure: 150 LB.
Body: C95400
Disc: C95400
Seat: C95400
Features
1.Tightened Pin structure.
2.Wafer end & Dual Plate design.
3.Dual Plate With Spring Loaded structure
4.Application: Chemical processing, Oil Field & Power Plant, Hydrocarbon processing
Standards
1.Design&Mamufacture: API 594, API 6D
2.Face-to-face API 594, API 6D, DIN 3202
3.Flange end: DIN2543-2548, API605, ASME B 16.47, ANSI B 16.5
4.Inspection and test: API 598
5.Special: NACE MR-01-75
