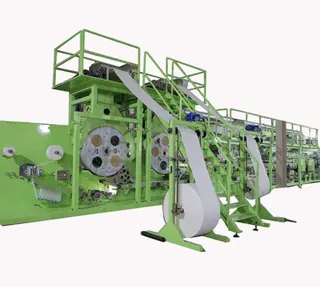

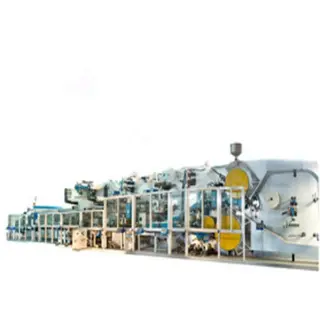

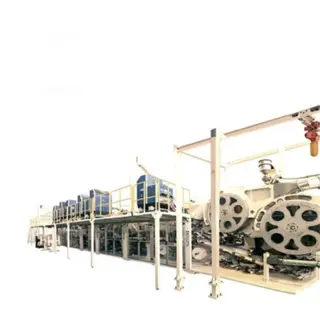

Professional PLC Control Adult Diaper Production Line

Name: Professional PLC Control Adult Diaper Production Line
SKU: HM-231017-ADM-09
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Explore our expertly engineered Adult Diaper Production Line Plant in China, operating at a speed of 300 pieces per minute. Equipped with PLC control, intuitive touch screen operation, and a cutting-edge Germany BST Automatic Web Guide System for precision and efficiency.

Request a quote

Detail Information

Professional PLC Control Adult Diaper Production Line

Subject	Parameter
Overall size(LWH)	24M4M3.6M(For reference only)
Machine size(LWH)	22m2.1m3.3m,based on the product provided by client
Design speed	300pcs/min
Stable speed	160pcs/min
Pass percentage	98%
Work efficiency	85%-90%
Power source	380V,50HZ,(3phase,4lines+ground wire)
Machine capacity	about 400KW
Air pressure	0.6-0.8Mpa
Machine weight	About 95T
Machine color	Customized

Configuration:

Product structure:
Leg cuff N.W,Top sheet N.W,Fluff core(with SAP) Side Tape,ELastic waistband,Frontal tape,Back sheet.

Product size:
M: 680*450 L: 800*650 XL: 950*760

Control system:
PLC control system,operating on the touch screen,man-machine interface

Tension system:
Leg cuff N.W,Top sheet N.W,elastic waistband,upper & down tissue,back sheet are A & B shaft active unwinding by Inverter motor.

Drive system:
Timing belt and flat belt are imported products,and all the key parts are imported bearings.

Safety system:
It has safety device on the operating side,matched with urgent stop switch,high audio fan uses sound insulation or silencer.

Packing way:
Equipped with the stacker at the request of client.

Materials corrective system:
Germany BST automatic web guide system(optional)
