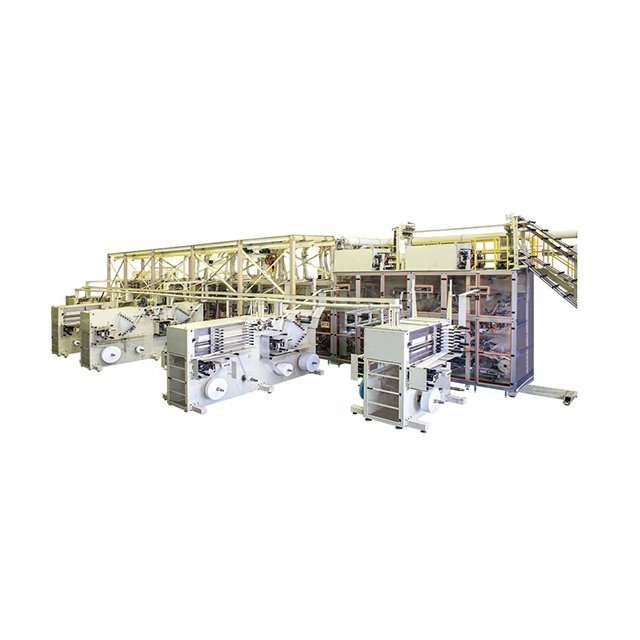

Professional Disposable Baby Diaper Machine for Sale
Model Number: HM-231012-BDM-01
Key Specifications / Features
Experience professionalism with our Disposable Baby Diaper Machine. Operating at a rate of 600 pieces per minute and boasting a remarkable 98% pass rate, these machines are equipped with a PLC control system, touch screen operation, and a user-friendly man-machine interface for optimal performance.
Detail Information
Product Details
Configuration:
Product Components:
Fluff Core with Up & Down Tissue (incorporating SAP), ADL Layer, Backsheet, Frontal Tape, Topsheet, Leg Cuff Nonwoven, Side Tapes, Waistband.
Product Sizes:
Small (S): 390 x 280 mm
Medium (M): 450 x 320 mm
Large (L): 500 x 320 mm
Extra Large (XL): 525 x 330 mm
Control System:
PLC control with a touchscreen interface
LED digital display for pattern-based production control
Tension System:
Tension unwinding equipped,constant tension control with buffer system,automatic web guide system,The unwiding system ensure materials stable working at full speed splice,minimize the impact on materials tension force,to reduce the machine stop frequency.
Drive System:
Full servo drive, digital size change, ensure run synchronized at full process. The frontal tape and back sheet using servo positioning cutting to ensure pattern consistent with the phase.
Safety Features:
Safety devices and an emergency stop switch on the operating side
High-performance fan with sound insulation or a silencer
Packing Options:
Stacker available upon client's request
Material Alignment System:
Optional German BST automatic web guide system for precise material alignment.

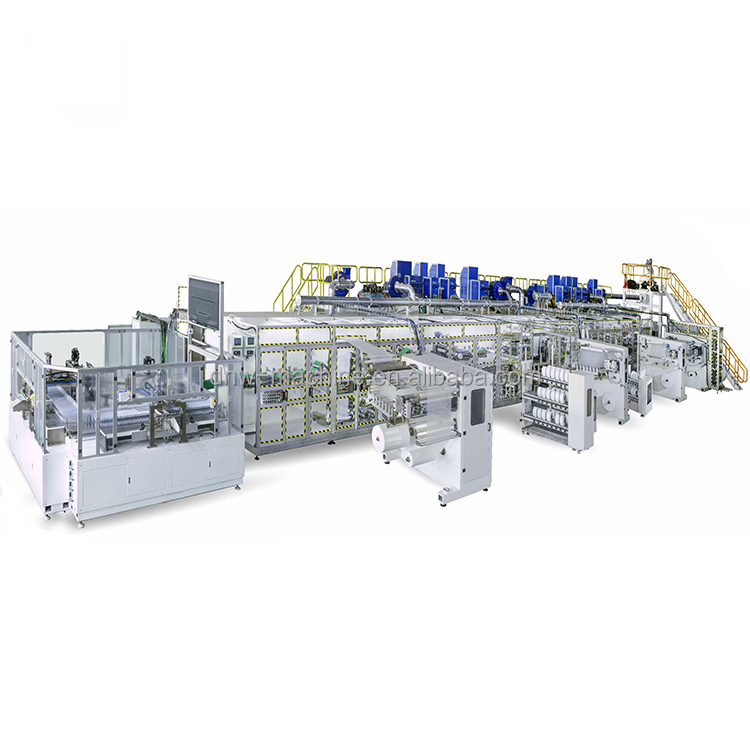

Professional Disposable Baby Diaper Machine
| Subject | Parameter |
| Overall size(L*W*H) | 28M*4M*3.6M(For reference only) |
| Machine size(L*W*H) | 25m*2.1m*3.3m,based on the product provided by client |
| Design speed | 600pcs/min |
| Stable speed | 450pcs/min |
| Pass percentage | 98% |
| Work efficiency | 90% |
| Power source | 380V,50HZ,(3phase,4lines+ground wire) |
| Machine capacity | about 300KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 70T |
| Machine color | Customized |
Configuration:
Product Components:
Fluff Core with Up & Down Tissue (incorporating SAP), ADL Layer, Backsheet, Frontal Tape, Topsheet, Leg Cuff Nonwoven, Side Tapes, Waistband.
Product Sizes:
Small (S): 390 x 280 mm
Medium (M): 450 x 320 mm
Large (L): 500 x 320 mm
Extra Large (XL): 525 x 330 mm
Control System:
PLC control with a touchscreen interface
LED digital display for pattern-based production control
Tension System:
Tension unwinding equipped,constant tension control with buffer system,automatic web guide system,The unwiding system ensure materials stable working at full speed splice,minimize the impact on materials tension force,to reduce the machine stop frequency.
Drive System:
Full servo drive, digital size change, ensure run synchronized at full process. The frontal tape and back sheet using servo positioning cutting to ensure pattern consistent with the phase.
Safety Features:
Safety devices and an emergency stop switch on the operating side
High-performance fan with sound insulation or a silencer
Packing Options:
Stacker available upon client's request
Material Alignment System:
Optional German BST automatic web guide system for precise material alignment.
Main Product Lines:
- Baby Diaper Production Line (Includes I & T shape diaper, Baby pants, Full Elastic waistband diaper)
- Adult Diaper Production Line (Includes Adult diaper, Adult pants)
- Sanitary Napkin & Panty Liner Production Line
- Menstruation Panty Production Line
- Under Pad Production Line
- Disposable Breast Pad Production Line
