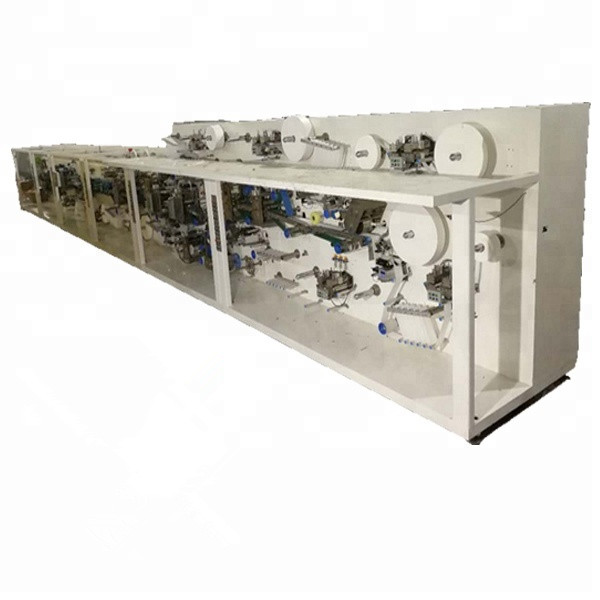

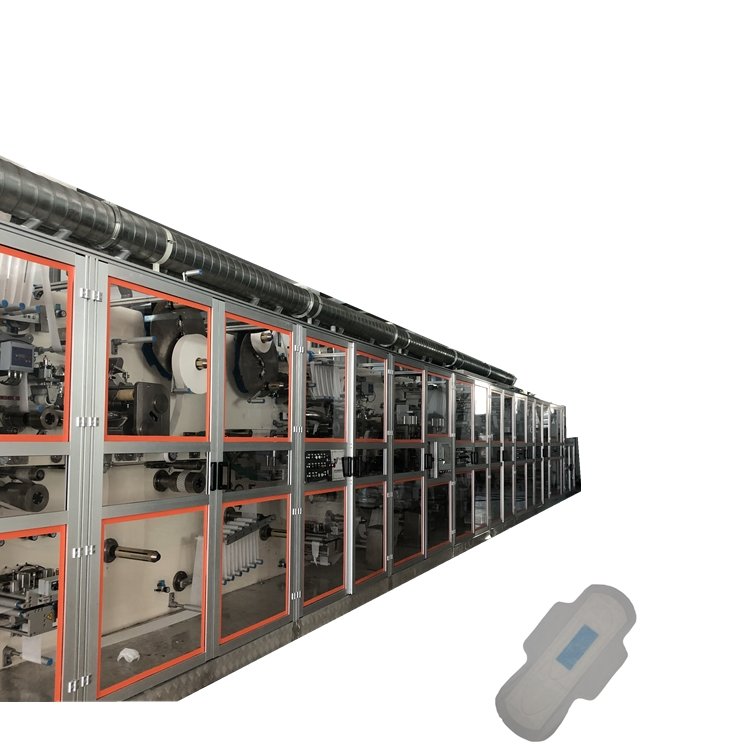

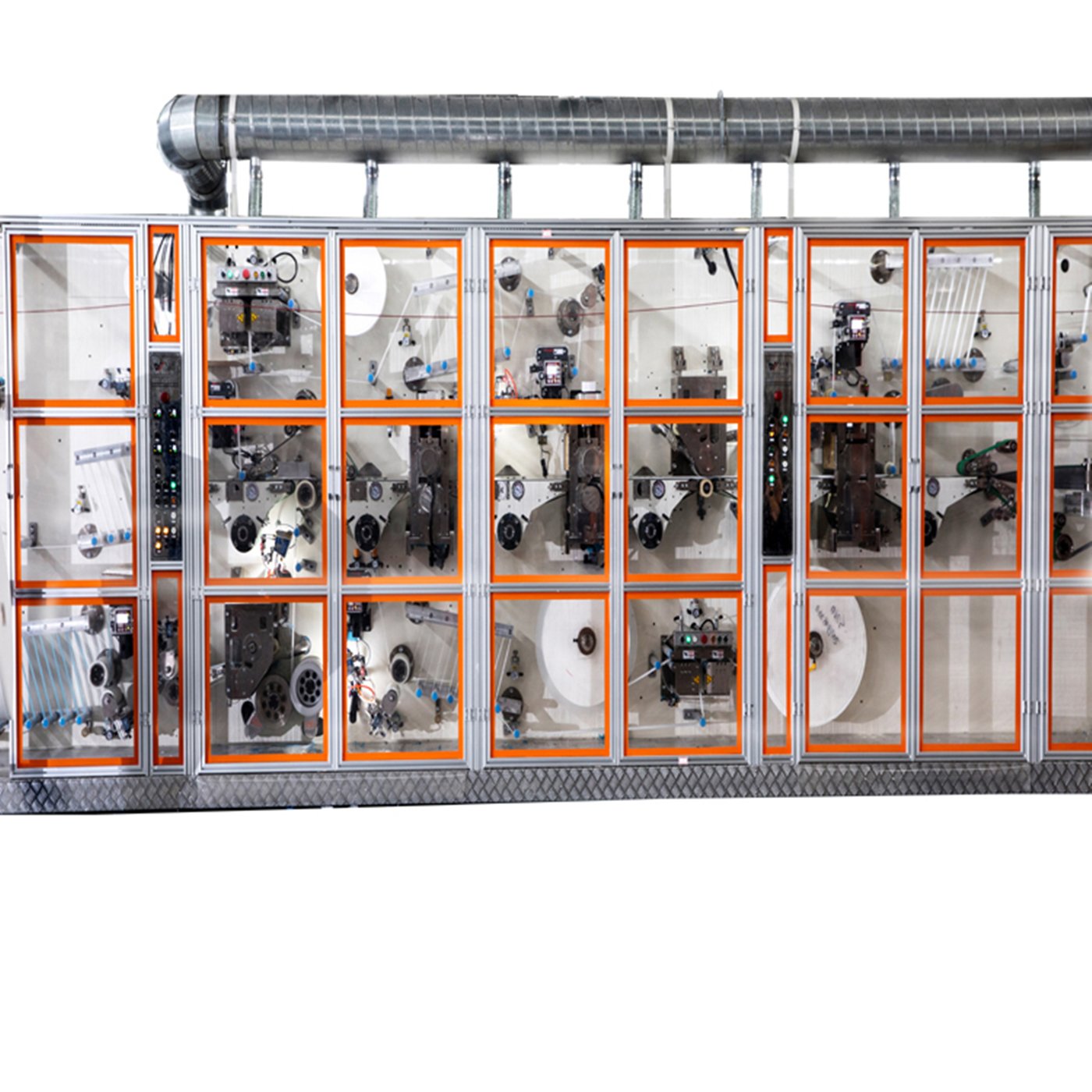

Latest Sanitary Napkin Making Machine with Single-Axle Gear

Name: Latest Sanitary Napkin Making Machine with Single-Axle Gear
SKU: HM-231031-SNM-06
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our Latest Sanitary Napkin Making Machine is equipped with state-of-the-art technology to meet your production needs. With a design speed of 600 pieces per minute, it ensures high productivity. The machine features a single-axle gear system, which provides precise and efficient operation.

Request a quote

Detail Information

Latest Sanitary Napkin Making Machine with Single-Axle Gear

Subject	Parameter
Overall size(LWH)	30M6M3M(For reference only)
Machine size(LWH)	22m2m2.5m,based on the product provided by client
Design speed	600pcs/min
Stable speed	500pcs/min
Pass precentage	98%
Work efficiency	90%
Power source	380V,50HZ,(3phase,4lines+ground wire)
Machine capacity	about 180KW
Air pressure	0.6-0.8Mpa
Machine weight	About 50T
Machine color	Customized

Configuration:

1. Product structure:
Topsheet, ADL(Blue core layer), Layer tissue,fluff pulp (mix with SAP) / SAP paper, back sheet, wings/back release paper.

2. Product size:
Daytime use: 240mm Night use: 285mm(Customized)

3. Control system:
PLC programming control, HMI operation.

4.Tension system:
Carrier tissue, absorbent paper, topshee NW, leg cuffs NW, ADL, PE film, back release paper, Wings release paper, pouch fillm, A&B shaft active unwinding by inverter motor.

5.Drive system:
Single-axle gear, imported timing belt, key position adopt the imported bearing.

6.Safety system:
Safty guard installed at the operating side, equipped with emergency stop switch, security identifier. Driven side is equipped with sadety pull wire.

7.Materials corrective system:
Germany BST automatic web guide system (optional)

Main Product:

1. Baby diaper Production Line( Include:I & T shape diaper,Baby pants,Full Elastic waistband diaper)
2. Adult diaper Production Line(Include:Adult diaper,Adult pants)
3. Sanitary Napkin & Panty Liner Production Line
4. Menstruation Panty Production Line
5. Under Pad Production Line
6. Disposable Breast Pad Production Line
