High Speed Baby Diaper Production Line

Name: High Speed Baby Diaper Production Line
SKU: DNW-NK350I
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

High speed baby diaper production line manufacturer in China: high speed baby diaper production line, quality guaranteed, for economic diapers production.

Request a quote

Detail Information

Name:High Speed Baby Diaper Production Line.

Main Technical Parameters

Designed speed: 130m/min.
Practical speed: 300-400pcs/min.
Installation capacity: 120KW (Including hot melt applicators)(380V 50Hz ).
Practical capacity: 95 KW (Including hot melt applicators) (380V 50Hz ).
Breaker Capacity: 400A.
Electric wire: 3x70mm2+1x25mm2+1x16mm2.
Machine size: (26x26x3)m (LxWxH).
Working size: (30x17x4)m (LxWxH).
Air compressor: 1.3m3/min＞0.6Mpa.
Total weight: 38T.

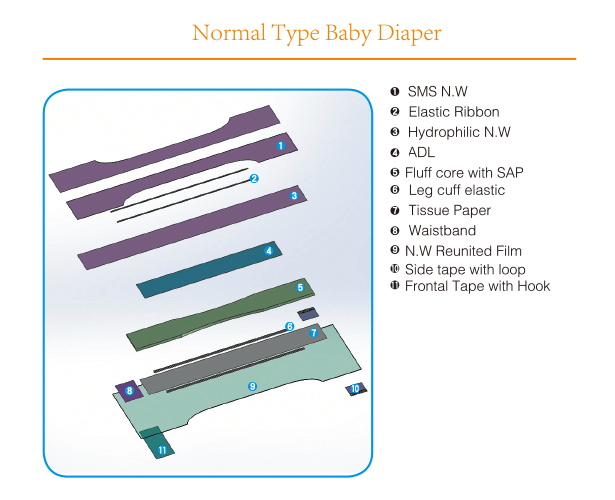

Product specification(mm): LxW, it can as your order. (S: 380x270, M: 450x310, L: 520x330, XL: 540x340)
Container: 2x40HQ+1x20GP.

Functions And Features

It can produce both economic and high-grade products.
Raw materials Automatic unwinding system.
Raw materials Automatic tension control system.
Raw materials Automatic feeding system.
Raw materials Automatic web guiding system.
Raw materials Automatic inspecting for raw material defect.
Raw materials Automatic inspecting for raw material splicing.
Raw materials Automatic rejection system.
Frontal tape and side tape out-set from the main machine to make it convenient to change raw material.
Fixed amount feeding system for fluff pulp and SAP.
Stacker connects with the main machine, to realize automatic arranging and bag-feeding function.
Man-machine interface.
Hot melt applicator outer-fixed(bridge style).
