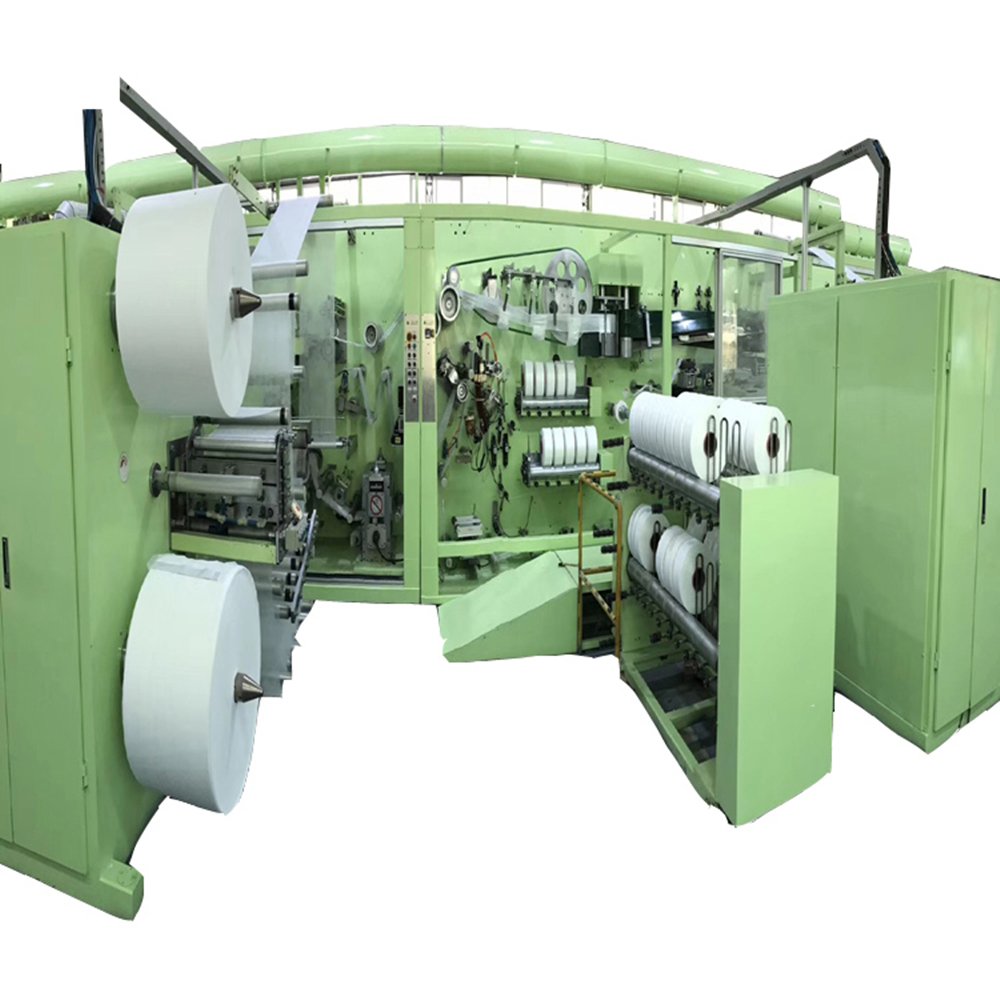

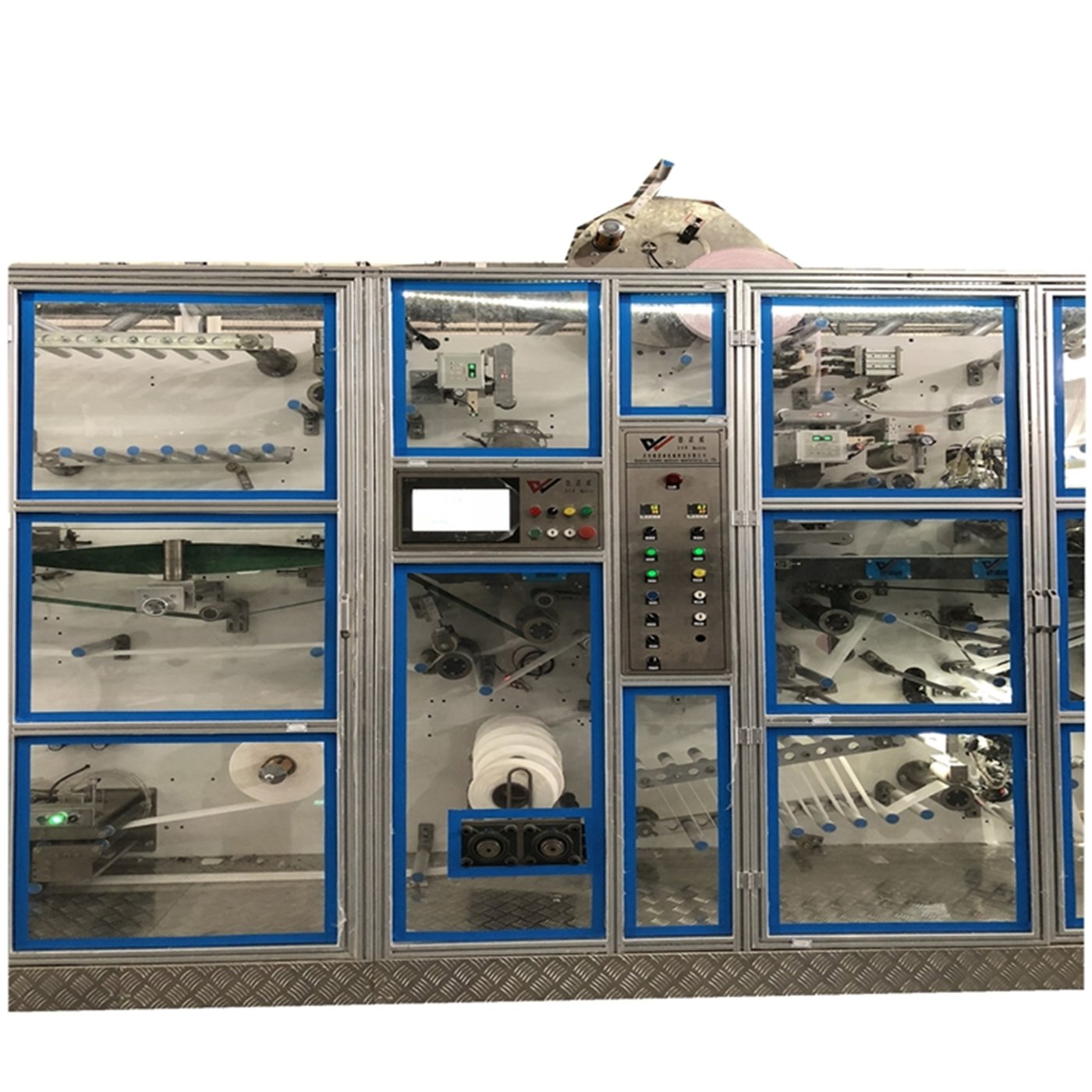

Fully Servo Panty Liner Production Line with Easy Packaging
Key Specifications / Features
Step into the future of panty liner production with our Easy Packaging Panty Liner Production Line Plant. These fully servo machines work at an impressive speed of 1300 pieces per minute and feature tension unwinding, along with constant tension control supported by a buffer system for seamless operation.
Request a quote
Detail Information
Fully Servo Panty Liner Production Line with Easy Packaging
| Overall Size | 25M*6M*3M |
| Machine Size | 19M*2M*2.4M |
| Design Speed | 1300(Pads) 600(Medicine Pad)pcs/min |
| Stable Work Speed | 1200(Pads) 400(Medicine Pad)pcs/min |
| Product Yield | ≥97% |
| Powe re Source | 380V, 50HZ |
| Machine Capacity | 150KW |
| Air Pressure | 0.6-0.8Mpa |
| Machine Weight | 30T |
Main Parameter
| Main Parameter | |
| PRODUCT STRUCTURE | Top sheet N.W., airlaid, backsheet, Back release paper, wrapping film. |
| PRODUCT SIZE | 155mmx65mm 165mmx65mm |
| CONTROL SYSTEM | PLC control system, Operating on the touch screen, Configure HDTV monitor. |
| TENSION SYSTEM | Tension unwinding equipped, constant tension control with buffer system.automatic web guide system. The unwinding system ensure materials stable working at full speed splice, minimize the impact on materials tension force, to reduce the time of stop machine. |
| DRIVE SYSTEM | Full automatic, full servo drive, imported timing belt, key position adopt the imported bearing. |
